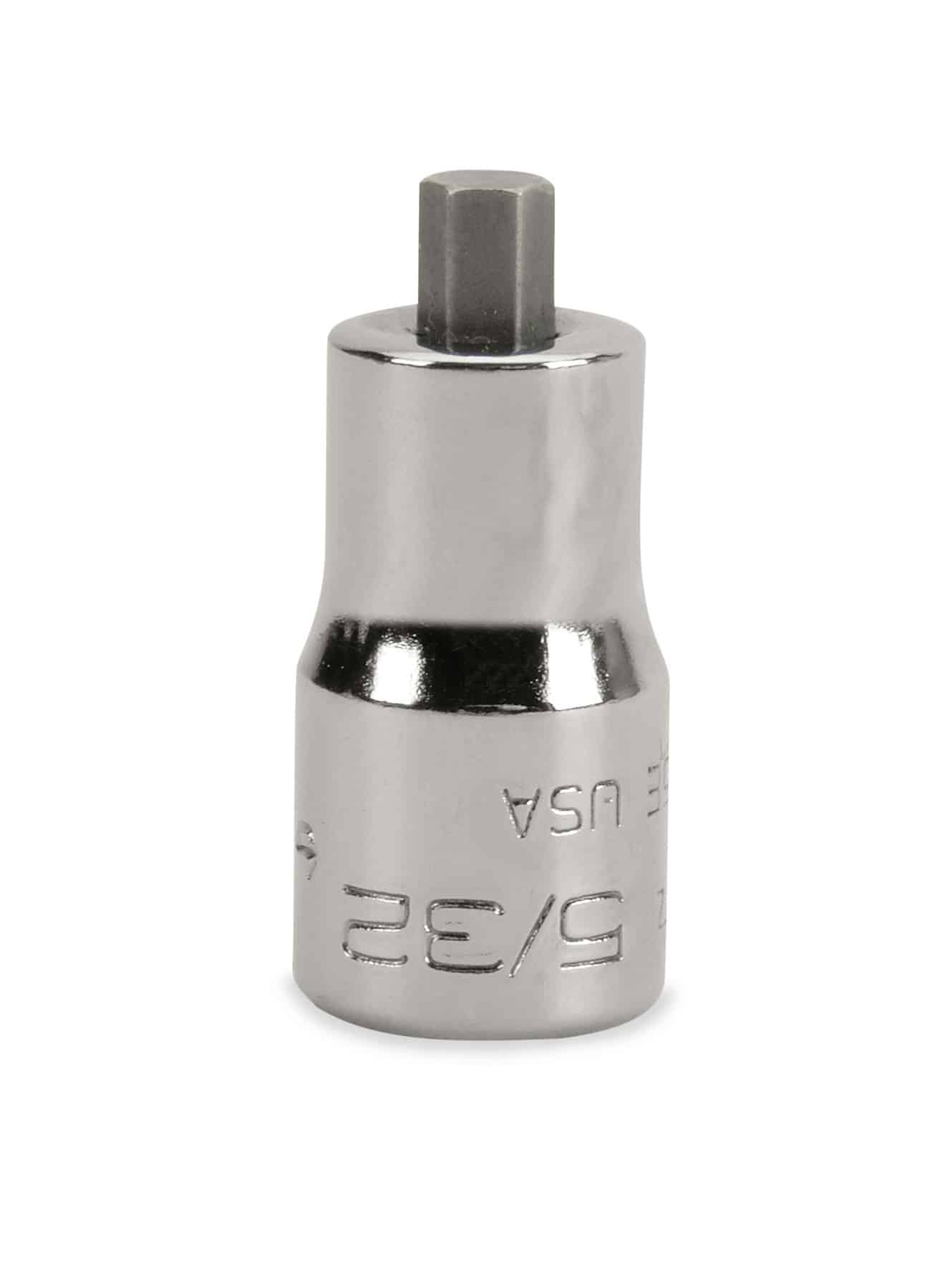

TMAXS5E — 1/4" Drive SAE 5/32" Stubby Hex Socket Driver. Service fasteners with a matching bit profile and size.
TMAXS5E — 1/4" Drive SAE 5/32" Stubby Hex Socket Driver. Service fasteners with a matching bit profile and size.
Automotive repair, machinery assembly and plant maintenance are potential settings where the specified fastener profile occurs.
These industry examples are selection guidance, not additional manufacturer approvals.
SAE and metric sizes are not substitutes. Also, do not use a hand-tool bit on an impact tool unless the manufacturer explicitly permits it.
The table compares official catalogue details. These are selection options, not confirmed replacements. Check the differences against the task and existing equipment.
| Compare | TMAXS5E | TMAXS3E View product | TMAXS4.5E View product |
|---|---|---|---|
| Official model description | TMAXS5E — 1/4" Drive SAE 5/32" Stubby Hex Socket Driver | TMAXS3E — 1/4" Drive SAE 3/32" Stubby Hex Socket Driver | TMAXS4.5E — 1/4" Drive SAE 9/64" Stubby Hex Socket Driver |
| Dimension D, Replacement Bit | TMAXS5E2 | TMAXS3E2 | TMAXS4.5E2 |
| Dimension A, Overall Length, inches | 1-1/16 | 1-1/32 | 1-1/16 |
| Dimension B, Exposed Bit Length, inches | 3/16 | 5/32 | 3/16 |
| Size, inches | 5/32 | 3/32 | 9/64 |
For TMAXS5E, verify the required task, working range, interface dimensions and package contents against the official catalogue details. This final check helps prevent ordering a visually similar model with a different fit or capability.
Begin with the recess in the fastener, rather than the size of the driving tool. A hex bit, a ball-end hex bit and a TORX bit engage different shapes. Even within one family, the exact size matters. Next, consider the complete arrangement from fastener to bit, holder and drive tool. A long bit can reach past an obstruction, but the surrounding space must also accommodate the socket body and the movement of the handle.
For a workshop assortment, list the fastener sizes used most often and compare that list with the actual set contents. Do not judge coverage from piece count alone. If the task needs a replacement insert, distinguish the loose bit from a complete socket driver. Similarly, check whether the listed tool is intended for manual or impact service. Drive size, finish and appearance do not establish impact suitability. Use the manufacturer’s stated application to make that decision.
Define the intended job in practical terms before comparing options. Record the equipment or component involved, the operation to perform and the access available around it. Include the current tool or accessory if this purchase replaces an existing item. That context helps distinguish a size change from a different product function. It also makes the application and industry examples above easier to assess against the actual work.
The official listing identifies this model as 1/4" Drive SAE 5/32" Stubby Hex Socket Driver. Its catalogue grouping is Hex Bit Sockets / Hex/Stubby, Inches, Chrome (1/4"). Use that description to identify the product format, then read the individual specifications for the details that matter to the job. A category describes where the product sits in the range; it is not an additional compatibility approval.
For this record, the available specification labels include Dimension A, Overall Length, inches; Dimension B, Exposed Bit Length, inches; Size, inches. Read each value together with its label and unit. A drive size, external dimension and working range describe different things, even if their numbers look similar. If the job requires a value that is not listed, request that detail before ordering instead of estimating it from the photograph.
The catalogue country-of-origin field is USA. This field concerns the listed product origin; it does not identify local inventory, delivery time or the warranty terms of a Vietnam quotation. Confirm those commercial details separately.
The comparison above names TMAXS3E and TMAXS4.5E. Review the displayed differences against the requirement for this job. Begin with function and compatibility, then compare access, configuration and included components. If the names differ by size, drive, colour or kit format, identify which difference matters before making a choice. Similar models are not automatic replacements, and a larger or more expensive option is not necessarily the better match.
Ask for a line-item description of the supplied configuration. For a set or kit, confirm the contents; for a component, confirm the quantity and the matching parent model where relevant. If photographs show a larger assembly or several items, do not assume all of them form part of this SKU. Keep any essential accessories and documents explicit in the quotation so that receiving checks can follow the same requirements.
On receipt, compare the item and its packaging with the ordered model, quantity and configuration. Check the supplied components and any requested documentation. Keep the product identification visible in the workshop’s inventory record. If the delivered item differs from the confirmed order, resolve that difference before assigning it to the planned job. This is especially useful when a range contains visually similar sizes or accessories for different parent tools.
For continued use, follow the manufacturer’s instructions for inspection, cleaning, storage and maintenance. Do not assume that a cleaning chemical, lubricant or maintenance method used on another tool is suitable here. Keep damaged or uncertain equipment out of the planned task until its condition is assessed. Record any replacement parts by model so future orders use the confirmed reference rather than a visual guess.
Send Techmaster Vietnam the model number TMAXS5E and details of the task or existing equipment. Include any required sizes, connections and accessories.
Before ordering, confirm the quotation, lead time, package contents and applicable warranty terms. The official catalogue is the technical reference; it does not establish local stock or a Vietnam selling price.
