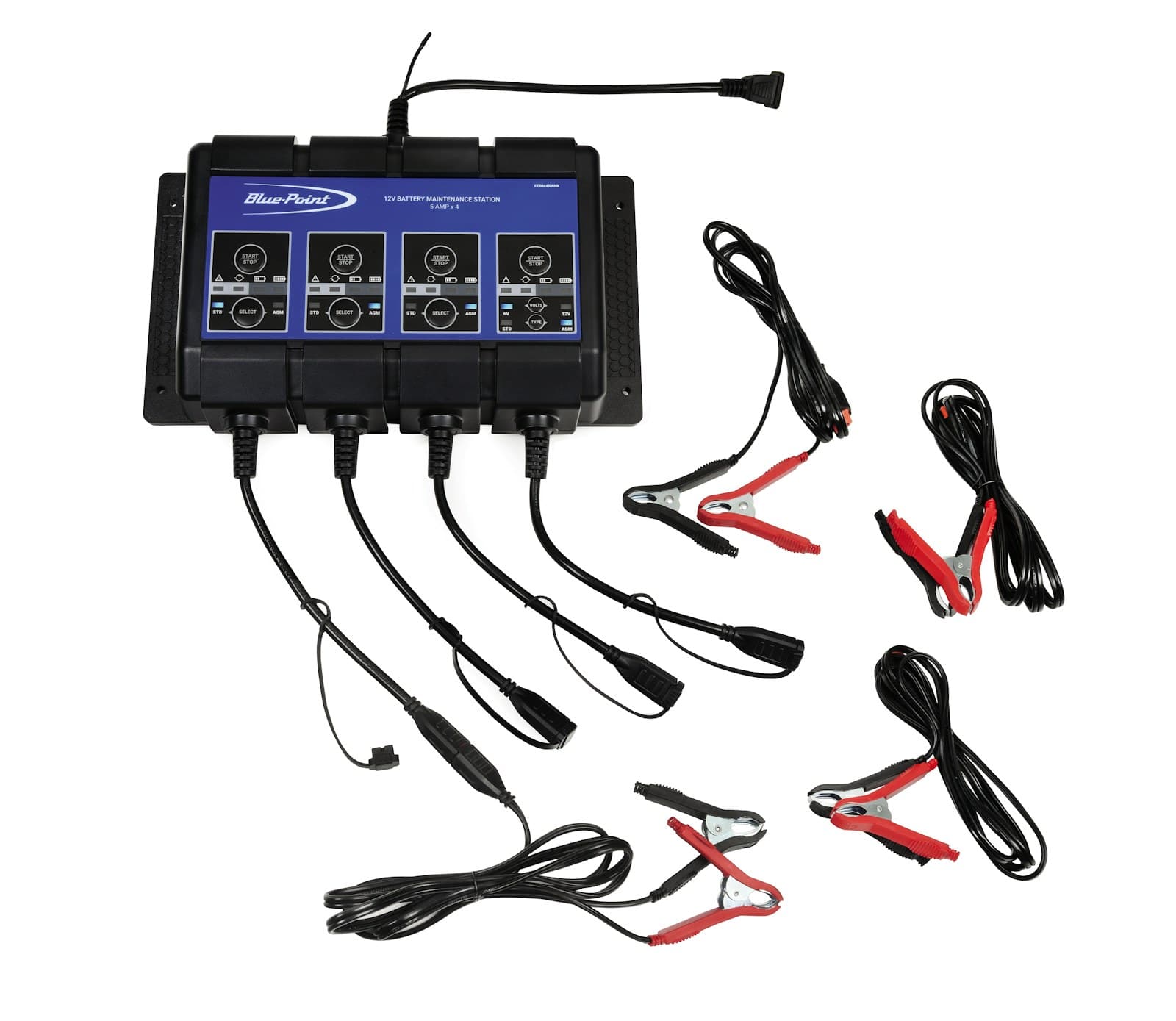

12 Volt Four Bank Battery Maintenance Station (Blue-Point®)

Official catalogue country of origin: VNM.

EEBM4BANK — 12 Volt Four Bank Battery Maintenance Station (Blue-Point®). Support the specified battery-service equipment or testing workflow.

Applications and industries

The manufacturer lists these application details:

• Meets the needs of repair shops, municipalities, collision repair facilities, fleet operations, marinas and more. Designed to provide continuous operation in a wide variety of professional/industrial battery service environments where more than battery must be charged or maintained at the same time. It functions as an automatic battery charger to bring depleted batteries to full charge so that they can be put back into service. Plus, it functions as an advanced automatic battery maintainer, conditioning batteries in long term storage charging situations.

Automotive workshops and fleet service departments are potential users with compatible batteries and equipment.

• Identify the battery chemistry, voltage and required service function.
• Then check whether the SKU is a charger, tester or a model-specific accessory.

These industry examples are selection guidance, not additional manufacturer approvals.

Features of EEBM4BANK

• Four independent channels; (3) 12 V and (1) 6/12 V
• Automatic operation
• Sealed case
• Small footprint
• VERSATILE: Properly charges and maintains all lead-acid battery types including: conventional flooded, AGM, spiral wound, marine and deep cycle
• INTELLIGENT: Utilizes an advanced multi-phase charging algorithm for an optimal charge every time
• BENEFICIAL: Charge and maintain process results in improved battery condition and restored reserve capacity
• SAFE: With reverse polarity protection and automatic operation, the charger brings safety to the shop
• EFFICIENT: Independent outputs means that a troublesome battery on one channel does not create issues for the other channels
• CONVENIENT: Retractable hanger for underhood, wall mount with four-hole back panel or benchtop use
• Quick set up and smart display icon feedback results in effective charging for your operation
• LED indicators for reverse polarity, charging status, diagnostic battery errors and more
• Includes (4) 6′ quick-connect lead/clamps (EEBM4BANK-1)
• Optional 10′ Extension Cable (EEBM4BANK-2), 18" Lead/Clamps (EEBM4BANK-3) and 18" Ring Terminal Leads (EEBM4BANK-4) are available for a variety of shop needs

Specifications and fit checks

• CEC DOE Approved: Yes
• Clamp Amperage Rating: 200
• Ventilation Type: Sealed
• Dimensions, L x W x H, inches: 16.5 x 15.8 x 4.2
• DC Lead Gauge, AWG: 18
• Warranty: 1 Year

A power supply or printer is not a standalone charger or tester. Confirm the parent model, electrical supply and supported battery types.

Similar models to EEBM4BANK

Compare the multi-bank station with a battery maintainer. Check supported battery chemistry and how many batteries the task requires. These are comparison options, not confirmed replacements.

The alternative is a North American AC configuration. Confirm its input rating and supply requirements before considering local use.

Choosing EEBM4BANK for the task

Identify the battery voltage, chemistry and required service function before comparing equipment. Charging, maintaining, testing and engine-start assistance are different tasks. A printer, power lead or cover may support the service equipment without performing any of those functions on its own. Read the exact product role first. Then compare the supported battery types and the supplied connections in the manufacturer’s record.

For powered equipment, confirm the input supply and the regional configuration separately from the battery-side output. An overseas catalogue listing does not establish compatibility with the available mains supply. Also, check the stated operating method, supplied leads and any required accessories. If the purchase supports an existing tester or charger, identify that parent model. Keep the quotation specific about what is included. Use the battery and equipment manufacturers’ procedures for the actual work, rather than treating a product comparison as an operating or charging instruction.

Planning the workshop application

Define the intended job in practical terms before comparing options. Record the equipment or component involved, the operation to perform and the access available around it. Include the current tool or accessory if this purchase replaces an existing item. That context helps distinguish a size change from a different product function. It also makes the application and industry examples above easier to assess against the actual work.

Understanding the catalogue record

The official listing identifies this model as 12 Volt Four Bank Battery Maintenance Station (Blue-Point®). Its catalogue grouping is Battery Chargers / Battery Maintainers. Use that description to identify the product format, then read the individual specifications for the details that matter to the job. A category describes where the product sits in the range; it is not an additional compatibility approval.

Further catalogue details

• cETLus Listed: Yes
• Output Currents Per Channel, A DC: 5
• Ball Bearing Fan: No
• Input Voltage (rated) V AC: 120

For this record, the available specification labels include CEC DOE Approved; Clamp Amperage Rating; Ventilation Type. Read each value together with its label and unit. A drive size, external dimension and working range describe different things, even if their numbers look similar. If the job requires a value that is not listed, request that detail before ordering instead of estimating it from the photograph.

The catalogue country-of-origin field is VNM. This field concerns the listed product origin; it does not identify local inventory, delivery time or the warranty terms of a Vietnam quotation. Confirm those commercial details separately.

Comparing options before ordering

The comparison above names EEBM600. Review the displayed differences against the requirement for this job. Begin with function and compatibility, then compare access, configuration and included components. If the names differ by size, drive, colour or kit format, identify which difference matters before making a choice. Similar models are not automatic replacements, and a larger or more expensive option is not necessarily the better match.

Purchase questions and receiving checks

What should the order include?

Ask for a line-item description of the supplied configuration. For a set or kit, confirm the contents; for a component, confirm the quantity and the matching parent model where relevant. If photographs show a larger assembly or several items, do not assume all of them form part of this SKU. Keep any essential accessories and documents explicit in the quotation so that receiving checks can follow the same requirements.

Receiving, care and record keeping

On receipt, compare the item and its packaging with the ordered model, quantity and configuration. Check the supplied components and any requested documentation. Keep the product identification visible in the workshop’s inventory record. If the delivered item differs from the confirmed order, resolve that difference before assigning it to the planned job. This is especially useful when a range contains visually similar sizes or accessories for different parent tools.

For continued use, follow the manufacturer’s instructions for inspection, cleaning, storage and maintenance. Do not assume that a cleaning chemical, lubricant or maintenance method used on another tool is suitable here. Keep damaged or uncertain equipment out of the planned task until its condition is assessed. Record any replacement parts by model so future orders use the confirmed reference rather than a visual guess.

Ordering in Vietnam

Send Techmaster Vietnam the model number EEBM4BANK and details of your task or existing equipment. Include any required sizes, connections and accessories. This helps identify the correct configuration.

Before ordering, confirm the quotation, lead time, package contents and applicable warranty terms. The official catalogue is the technical reference; it does not establish local stock or a Vietnam selling price.
