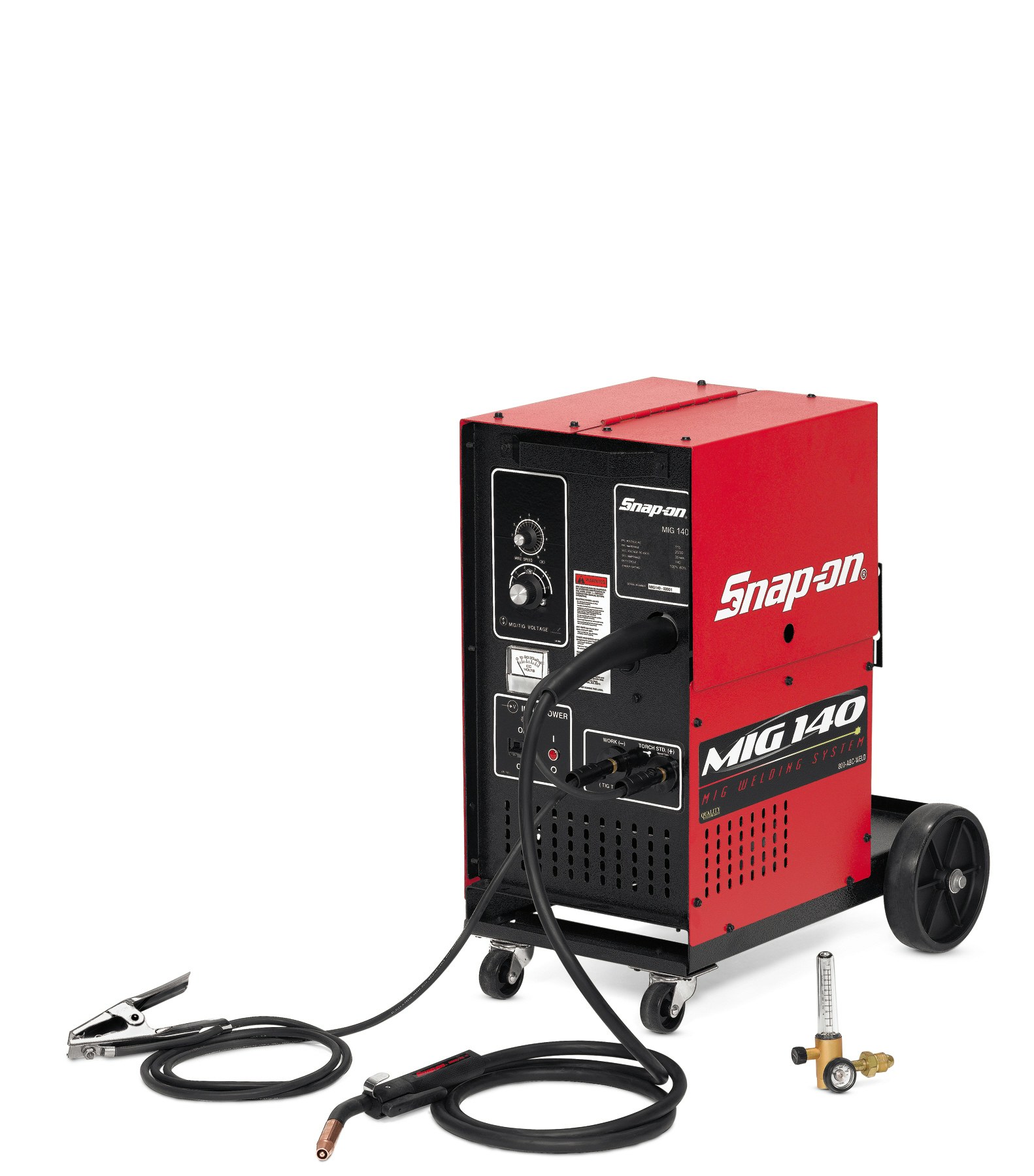

140 A Workhorse MIG Welder

MIG140 — 140 A Workhorse MIG Welder. Evaluate this product against the exact task and equipment specification.

Applications and industries

The manufacturer lists these application details:

• Snap-on® MIG welders can be used as straight polarity with shielding gas or reverse polarity without shielding gas for flux cored wire

The relevant industry depends on the manufacturer’s listed application and the equipment being serviced.

• Check the official application and dimensions before selecting this SKU.
• Then confirm any required mating tool, accessory or installation details.

These industry examples are selection guidance, not additional manufacturer approvals.

Features of MIG140

• All-copper wound transformer features Nomex® insulation and bolted lamination to provide precise voltage control and repeatable welds
• Capacitor bank and diode set delivers consistent voltage and industry-leading smooth-arc characteristics
• Wire feed assembly is constructed of precision machined cast aluminum and features all-metal gearing and powerful 800 in/min delivery for consistent wire speeds
• Welds 1/4" in a single pass with 140 A max output at 60% duty cycle
• No need to purchase a welding cart—complete running gear along with flow-meter/regulator and welding wire
• No limit on performance when wall outlet power is limited
• Technical Support: Industry-leading technical support of over 30 years of experience by calling 800-ABC-WELD to speak with a live expert
• Optional Accessories: MHG5A Aluminum Spool-gun, CKSTP2125A DC TIG Conversion Kit, CKSMPK1 Parts and Consumables Kit

Specifications and fit checks

• Wire Size, inches (mm): .023–.035 (.58–.89)
• Spot Weld Time (sec): N/A
• Shipping Weight, lb: 176
• Dimensions, inches (W x D x H): 14-1/2 x 26.3 x 32.3
• Warranty*: 2 Years
• Voltage Settings, MIG/TIG: 6/3

Ask for a model-specific fit check where the catalogue does not state compatibility.

Similar models to MIG140

The table compares official catalogue details. These are selection options, not confirmed replacements. Check the differences against the task and existing equipment.

MIG140 selection checklist

For MIG140, verify the required task, working range, interface dimensions and package contents against the official catalogue details. This final check helps prevent ordering a visually similar model with a different fit or capability.

Choosing MIG140 for the task

Identify the parent tool, machine or assembly before selecting a service component. A spring, screw, spacer, shaft, adaptor or other small part may have a simple name but a very specific role. The connection, dimensions and equipment revision can all matter. Start with the service documentation and the model number, then compare the official part reference. Do not use a general visual resemblance as the only basis for substitution.

For a missing or worn component, record where it belongs and which other parts it contacts. Photographs and measurements can support the inquiry, but they do not replace the maker’s fit information. If the source record is limited, keep the unresolved dimensions or compatibility questions open until they are confirmed. An accessory is not a complete service system unless the catalogue describes it that way. Likewise, a component from a related set is not automatically interchangeable. Keep the confirmed replacement reference with the equipment’s maintenance record.

Planning the workshop application

Define the intended job in practical terms before comparing options. Record the equipment or component involved, the operation to perform and the access available around it. Include the current tool or accessory if this purchase replaces an existing item. That context helps distinguish a size change from a different product function. It also makes the application and industry examples above easier to assess against the actual work.

Understanding the catalogue record

The official listing identifies this model as 140 A Workhorse MIG Welder. Its catalogue grouping is Snap-on® MIG Wire Feed Welders / Snap-on® 115 Volt MIG Welders. Use that description to identify the product format, then read the individual specifications for the details that matter to the job. A category describes where the product sits in the range; it is not an additional compatibility approval.

Further catalogue details

• Input Voltage: 115 V AC, 50/60 Hz 1-ph
• Machine Weight, lb: 140
• Ground Cable Length, feet (m): 10 (3)
• Welding Capacity, Single Pass, inches: 1/4

For this record, the available specification labels include Wire Size, inches (mm); Shipping Weight, lb; Dimensions, inches (W x D x H). Read each value together with its label and unit. A drive size, external dimension and working range describe different things, even if their numbers look similar. If the job requires a value that is not listed, request that detail before ordering instead of estimating it from the photograph.

The catalogue country-of-origin field is USA. This field concerns the listed product origin; it does not identify local inventory, delivery time or the warranty terms of a Vietnam quotation. Confirm those commercial details separately.

Comparing options before ordering

The comparison above names MIG135. Review the displayed differences against the requirement for this job. Begin with function and compatibility, then compare access, configuration and included components. If the names differ by size, drive, colour or kit format, identify which difference matters before making a choice. Similar models are not automatic replacements, and a larger or more expensive option is not necessarily the better match.

Purchase questions and receiving checks

What should the order include?

Ask for a line-item description of the supplied configuration. For a set or kit, confirm the contents; for a component, confirm the quantity and the matching parent model where relevant. If photographs show a larger assembly or several items, do not assume all of them form part of this SKU. Keep any essential accessories and documents explicit in the quotation so that receiving checks can follow the same requirements.

Receiving, care and record keeping

On receipt, compare the item and its packaging with the ordered model, quantity and configuration. Check the supplied components and any requested documentation. Keep the product identification visible in the workshop’s inventory record. If the delivered item differs from the confirmed order, resolve that difference before assigning it to the planned job. This is especially useful when a range contains visually similar sizes or accessories for different parent tools.

For continued use, follow the manufacturer’s instructions for inspection, cleaning, storage and maintenance. Do not assume that a cleaning chemical, lubricant or maintenance method used on another tool is suitable here. Keep damaged or uncertain equipment out of the planned task until its condition is assessed. Record any replacement parts by model so future orders use the confirmed reference rather than a visual guess.

Ordering in Vietnam

Send Techmaster Vietnam the model number MIG140 and details of the task or existing equipment. Include any required sizes, connections and accessories.

Before ordering, confirm the quotation, lead time, package contents and applicable warranty terms. The official catalogue is the technical reference; it does not establish local stock or a Vietnam selling price.

For the source record, see the official Snap-on product listing. You can also browse the Vietnam product catalogue for related tools.
