Applications, specifications and model comparison

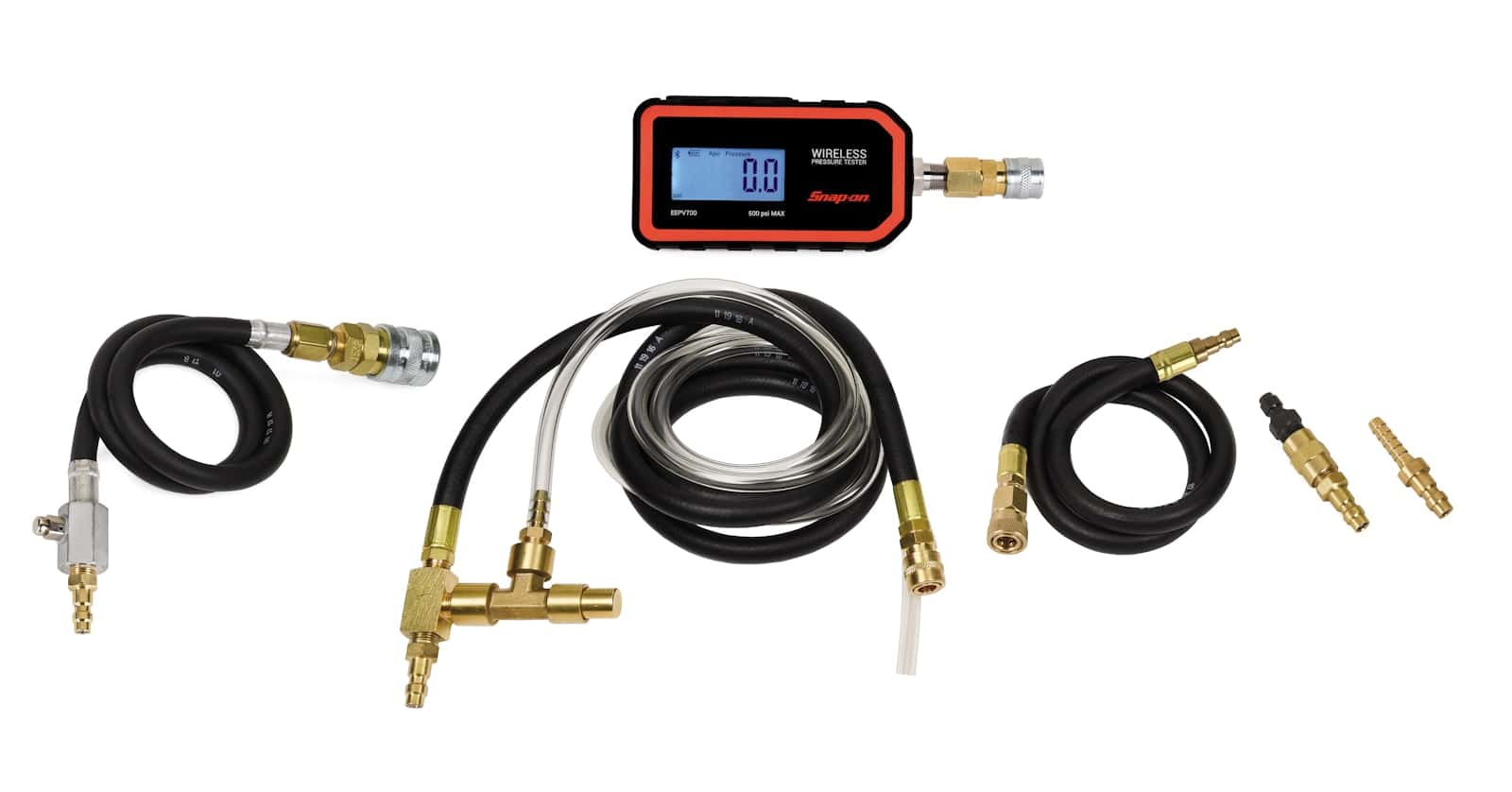

EEPV700-KIT — 500 PSI Wireless Pressure Tester Kit. Support measurements or connection to the specified test equipment.
Applications and industries
The manufacturer lists these application details:
- Diagnose engine and transmission performance issues (such as misfire, run-rough DTC’s). The digital display unit supplements classic analog gauge testing of compression, vacuum, fuel, engine or transmission pressure up to 500 PSI maximum. For use with optional vehicle specific adaptors on motorcycles, ATV’s, autos light trucks and more. The results can also be viewed on a remote devise using the free APP. This makes the testing process more convenient since results can be stored and shared.
Vehicle diagnostics, equipment troubleshooting and maintenance testing are potential settings within the product’s stated ratings.
- Match the probe, connector or instrument function to the measurement.
- Then verify voltage limits, measurement category and lead compatibility from the complete documentation.
These industry examples are selection guidance, not additional manufacturer approvals.
Features of EEPV700-KIT
- Tests compression, vacuum, fuel, engine oil or transmission fluid pressure up to 500 PSI maximum
- View the pressure and vacuum measurement results that transmit wirelessly to your Bluetooth® enabled Android® or Apple® device, (sold separatly) or on the tool’s display
- View the pressure and vacuum measurement results on the tool’s display, or transmitted wirelessly to a Bluetooth® enabled Android® or Apple® device (sold separately)
- The min/max readings are graphed to aid in diagnosing the problem
- Stores 1-12 cylinder readings; no writing required
- Stores the results by customer, vehicle, license plate, date, technician and more
- Share the results via shop email, text or social media—include with vehicle owner’s invoice
- Convenient magnet for easy mounting
- Follow these steps: 1. Get free app 2. Use included EEPV7 accessory to select and connect 3. Select optional EEPV5 or EEFI5 adaptors 4. Connect to engine 5. Sync to remote device 6. Take readings and diagnose 7. Store and share results
- Technical Support: 855-779-8880
Specifications and fit checks
- Units Of Measure: PSI, kPa, Bar, inHg, mmHg, inH2O, cmH2O
- Operating Temperature: 32–104 °F (0–40 °C)
- Vacuum Range: 0 to -30 inHg
- Storage Temperature: 14–122 °F (-10–50 °C)
- Maximum Operating Altitude, Feet (Meters): 6,561 (2,000)
- Thickness (unit only), inches (mm): 1.94 (49.3)
Never infer mains or high-voltage suitability from connector shape or color. Check the full instrument-and-lead safety rating before use.
Similar-model selection for EEPV700-KIT
A sufficiently close alternative has not been verified for this SKU. Therefore, compare the exact function, dimensions and mating equipment before choosing another model. Ask Techmaster Vietnam for a model-specific comparison.
EEPV700-KIT selection checklist
For EEPV700-KIT, verify the required task, working range, interface dimensions and package contents against the official catalogue details. This final check helps prevent ordering a visually similar model with a different fit or capability.
Choosing EEPV700-KIT for the task
Define the measurement or connection task before choosing a tester, probe, lead or adaptor. The signal type, expected range, connector and access point all matter. A complete instrument and a lead accessory do different jobs. Next, check the documented limits of the instrument and every connected accessory. Connector shape and colour do not establish the permitted voltage, current or measurement category.
For workshop diagnostics, distinguish low-voltage vehicle work from mains or other higher-energy circuits. A tool suitable for one setting is not automatically suitable for another. Follow the instrument maker’s complete safety instructions and the equipment service procedure. If a replacement lead or probe is required, include the instrument model and the exact connection details in the inquiry. Also, compare the supplied components of a kit rather than assuming all shown probes are included. Catalogue guidance does not replace a task-specific electrical risk assessment.
Planning the workshop application
Define the intended job in practical terms before comparing options. Record the equipment or component involved, the operation to perform and the access available around it. Include the current tool or accessory if this purchase replaces an existing item. That context helps distinguish a size change from a different product function. It also makes the application and industry examples above easier to assess against the actual work.
Understanding the catalogue record
The official listing identifies this model as 500 PSI Wireless Pressure Tester Kit. Its catalogue grouping is Compression Gauge Sets and Adaptors / Pressure Gauge Sets. Use that description to identify the product format, then read the individual specifications for the details that matter to the job. A category describes where the product sits in the range; it is not an additional compatibility approval.
Further catalogue details
- Temperature Coefficient: Add 0.05% of reading per degree for temperature ranges 14–64 °F (-10–18 °C) and 82–131 °F (28–55 °C)
- Length (unit only), inches (mm): 4.72 (120)
- Weight (unit only), oz (g): 13.4 (379.9)
- Range, PSI: 0–500
For this record, the available specification labels include Units Of Measure; Operating Temperature; Vacuum Range. Read each value together with its label and unit. A drive size, external dimension and working range describe different things, even if their numbers look similar. If the job requires a value that is not listed, request that detail before ordering instead of estimating it from the photograph.
The catalogue country-of-origin field is KOR. This field concerns the listed product origin; it does not identify local inventory, delivery time or the warranty terms of a Vietnam quotation. Confirm those commercial details separately.
Comparing options before ordering
No sufficiently close alternative is confirmed in the comparison section. That is an unresolved selection question, not proof that every other model is unsuitable. For a useful comparison, provide the required function, dimensions and parent equipment. A supplier can then check a specific candidate against those requirements. Do not substitute a related accessory, a kit component or a product with a similar name without resolving the relevant fit details.
Purchase questions and receiving checks
What should the order include?
Ask for a line-item description of the supplied configuration. For a set or kit, confirm the contents; for a component, confirm the quantity and the matching parent model where relevant. If photographs show a larger assembly or several items, do not assume all of them form part of this SKU. Keep any essential accessories and documents explicit in the quotation so that receiving checks can follow the same requirements.
Receiving, care and record keeping
On receipt, compare the item and its packaging with the ordered model, quantity and configuration. Check the supplied components and any requested documentation. Keep the product identification visible in the workshop’s inventory record. If the delivered item differs from the confirmed order, resolve that difference before assigning it to the planned job. This is especially useful when a range contains visually similar sizes or accessories for different parent tools.
For continued use, follow the manufacturer’s instructions for inspection, cleaning, storage and maintenance. Do not assume that a cleaning chemical, lubricant or maintenance method used on another tool is suitable here. Keep damaged or uncertain equipment out of the planned task until its condition is assessed. Record any replacement parts by model so future orders use the confirmed reference rather than a visual guess.
Ordering in Vietnam
Send Techmaster Vietnam the model number EEPV700-KIT and details of the task or existing equipment. Include any required sizes, connections and accessories.
Before ordering, confirm the quotation, lead time, package contents and applicable warranty terms. The official catalogue is the technical reference; it does not establish local stock or a Vietnam selling price.
For the source record, see the official Snap-on product listing. You can also browse the Vietnam product catalogue for related tools.
