Basic Bar-Type Manual Tapped Hole Puller Set

Official catalogue country of origin: USA.

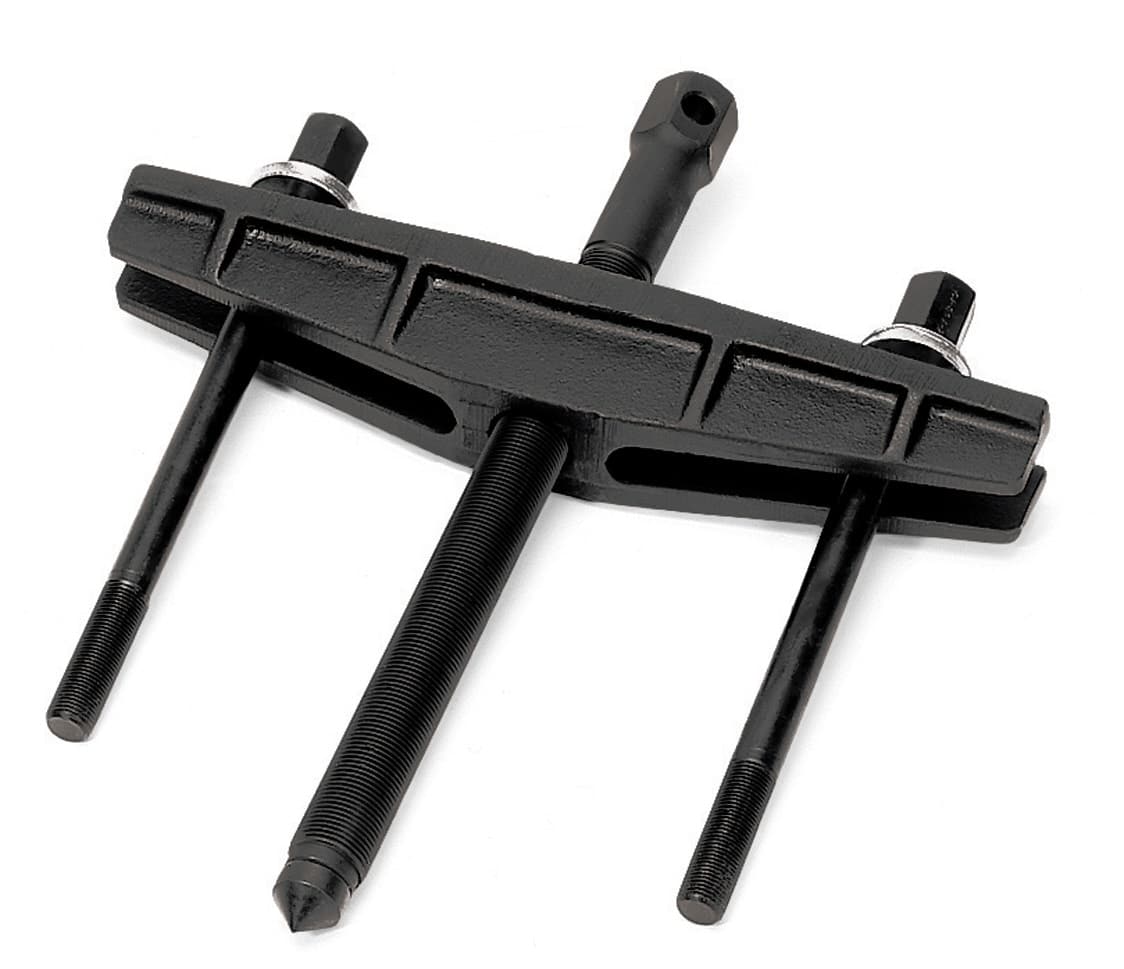

CJ84C — Basic Bar-Type Manual Tapped Hole Puller Set. Support removal of a component using the appropriate pulling or extracting arrangement.

Applications and industries

Automotive repair, machinery service and maintenance workshops are potential users for suitable removal tasks.

• Identify the grip points, clearance and component dimensions.
• Then check the set contents and the maker’s allowed setup.

These industry examples are selection guidance, not additional manufacturer approvals.

Features of CJ84C

• CJ840C less all adaptors and side rods except 5/8"-18 x 10"

Specifications and fit checks

• Centering Adaptor: CJ84-16
• Maximum Spread, inches (mm): 2-5/8–11-5/8 (67–295)
• Description (Chart): Basic Puller Set 1/2"-20, 1/2"-13, 5/8"-18, 5/8"-11, 3/4"-16, 3/4"-10
• Pressure Screw Size, inches: 1-14 x 13-5/8
• Clip/Washer: ME5A16 (2)
• Pressure Screw: CJ84-4

Compare reach, spread and attachment method. Do not assume an adaptor or spare part is a complete pulling tool.

Similar models to CJ84C

The table compares the listed model details. These are selection options, not confirmed replacements. Check the differences against your task and existing equipment.

Choosing CJ84C for the task

A removal tool must suit the component, the available grip points and the space around the assembly. Compare reach, spread and attachment method before considering a similar-looking puller. The forcing component, jaws and adaptors work as an arrangement, not as independent evidence of universal capacity. For a bearing separator, check the component dimensions and its connection to the intended pulling equipment.

A master set and an individual replacement part can have very different scope. Review the actual supplied pieces and the permitted combinations in the manufacturer’s instructions. Do not infer an allowable load from overall size or from the capacity of a different component. If the task involves a specialized assembly, include the machine model and service procedure in the selection inquiry. Keep the tool’s condition and the correct setup under the workshop’s maintenance controls. This description does not replace the instructions for a loaded pulling operation.

Planning the workshop application

Define the intended job in practical terms before comparing options. Record the equipment or component involved, the operation to perform and the access available around it. Include the current tool or accessory if this purchase replaces an existing item. That context helps distinguish a size change from a different product function. It also makes the application and industry examples above easier to assess against the actual work.

Understanding the catalogue record

The official listing identifies this model as Basic Bar-Type Manual Tapped Hole Puller Set. Its catalogue grouping is Bar-Type Interchangeable / 6-Ton Capacity (5.41 t), Tapped Hole. Use that description to identify the product format, then read the individual specifications for the details that matter to the job. A category describes where the product sits in the range; it is not an additional compatibility approval.

Further catalogue details

• Yoke: CJ84-1B
• Side Rods (2): 5/8-18 x 10

For this record, the available specification labels include Centering Adaptor; Maximum Spread, inches (mm); Description (Chart). Read each value together with its label and unit. A drive size, external dimension and working range describe different things, even if their numbers look similar. If the job requires a value that is not listed, request that detail before ordering instead of estimating it from the photograph.

The catalogue country-of-origin field is USA. This field concerns the listed product origin; it does not identify local inventory, delivery time or the warranty terms of a Vietnam quotation. Confirm those commercial details separately.

Comparing options before ordering

The comparison above names CJ840C. Review the displayed differences against the requirement for this job. Begin with function and compatibility, then compare access, configuration and included components. If the names differ by size, drive, colour or kit format, identify which difference matters before making a choice. Similar models are not automatic replacements, and a larger or more expensive option is not necessarily the better match.

Purchase questions and receiving checks

What should the order include?

Ask for a line-item description of the supplied configuration. For a set or kit, confirm the contents; for a component, confirm the quantity and the matching parent model where relevant. If photographs show a larger assembly or several items, do not assume all of them form part of this SKU. Keep any essential accessories and documents explicit in the quotation so that receiving checks can follow the same requirements.

Receiving, care and record keeping

On receipt, compare the item and its packaging with the ordered model, quantity and configuration. Check the supplied components and any requested documentation. Keep the product identification visible in the workshop’s inventory record. If the delivered item differs from the confirmed order, resolve that difference before assigning it to the planned job. This is especially useful when a range contains visually similar sizes or accessories for different parent tools.

For continued use, follow the manufacturer’s instructions for inspection, cleaning, storage and maintenance. Do not assume that a cleaning chemical, lubricant or maintenance method used on another tool is suitable here. Keep damaged or uncertain equipment out of the planned task until its condition is assessed. Record any replacement parts by model so future orders use the confirmed reference rather than a visual guess.

Ordering in Vietnam

Send Techmaster Vietnam the model number CJ84C and details of your task or existing equipment. Include any required sizes, connections and accessories. This helps identify the correct configuration.

Before ordering, confirm the quotation, lead time, package contents and applicable warranty terms. The official catalogue is the technical reference; it does not establish local stock or a Vietnam selling price.
