Applications, specifications and model comparison

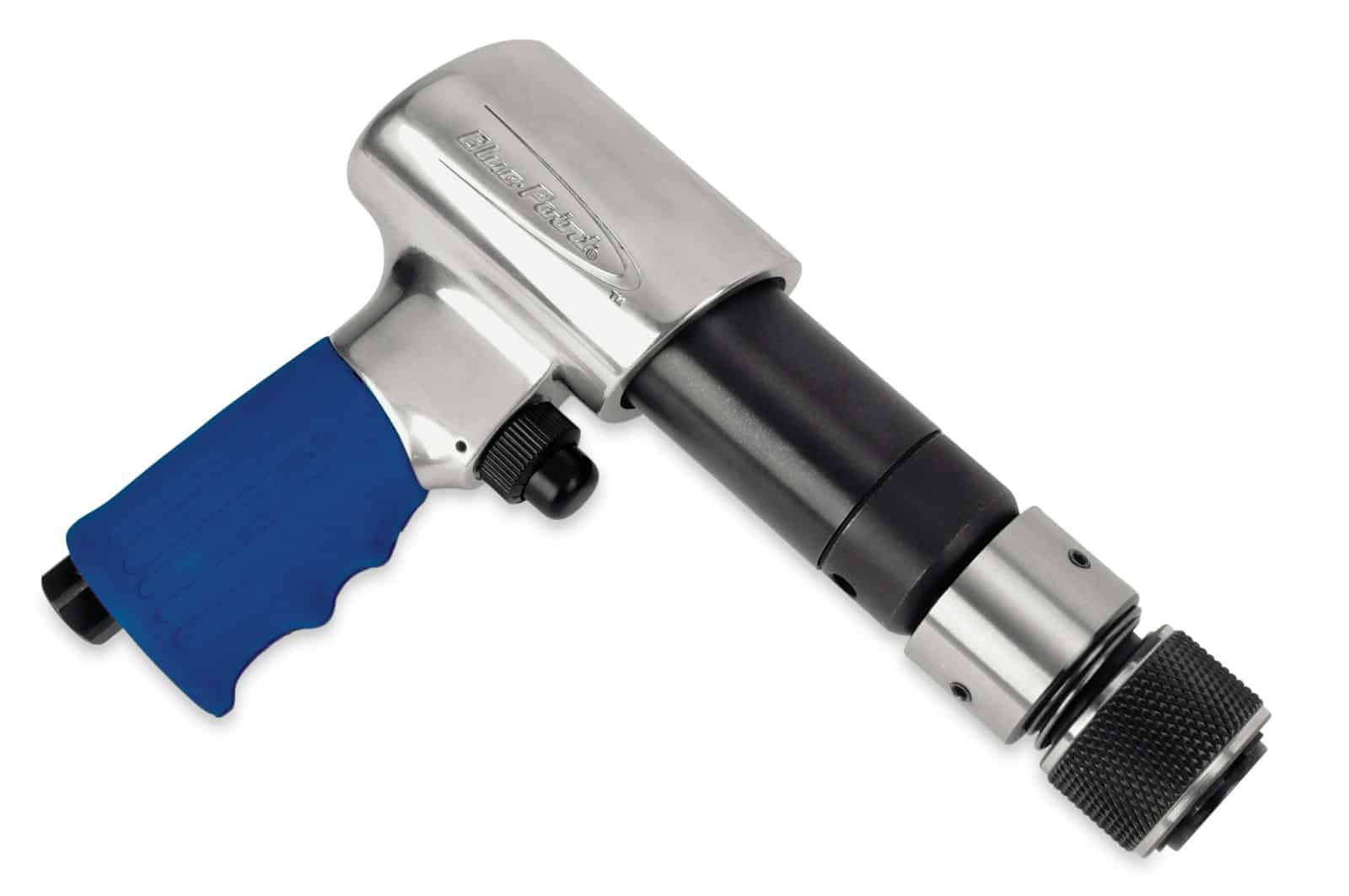

AT2050 — Heavy-Duty Air Hammer (Blue-Point®). Deliver controlled blows in tasks suited to the stated hammer or air-hammer accessory.
Applications and industries
Fabrication, vehicle repair and maintenance workshops are potential settings within the maker’s usage limits.
- Check whether the SKU is a complete hammer or an accessory.
- Then match face, weight or shank style to the work and the host tool.
These industry examples are selection guidance, not additional manufacturer approvals.
Features of AT2050
- Intended for heavy-duty applications such as cutting large bolts and rivets, separating ball joints, cutting heavy-gauge sheet metal and driving bushings
- 3,400 BPM
- Quick-change chuck makes bit changing easy
- Variable-speed trigger with a built-in speed regulator
- Comfort grip handle for less user fatigue
- Hard-hitting; gets the job done quicker
Specifications and fit checks
- Shank Opening, inches (mm): 0.401 (10.1)
- Sound Pressure Level, dB(A): 99.0
- Piston Stroke, inches (mm): 2.75 (70)
- Length, inches (mm): 7.4 (188)
- Vinyl Boot: AT2050BOOT
- Air Consumption, Free Speed, CFM (SCFM) [l/min]: 2.5 (18) [71]
Compare weight, face design and handle or shank format. A hand hammer and an air-hammer bit require different tool setups.
Similar-model selection for AT2050
A sufficiently close alternative has not been verified for this SKU. Therefore, compare the exact function, dimensions and mating equipment before choosing another model. Ask Techmaster Vietnam for a model-specific comparison.
AT2050 selection checklist
For AT2050, verify the required task, working range, interface dimensions and package contents against the official catalogue details. This final check helps prevent ordering a visually similar model with a different fit or capability.
Choosing AT2050 for the task
Begin with the intended action: marking, driving, separating or cutting. The face or tip form determines how the tool contacts the work. A hammer, punch, chisel or air-hammer bit can have a similar workshop setting while requiring a different setup. Check whether the listing is a complete hand tool, a powered-tool attachment or a replacement component.
Next, compare the dimensions and material information that the manufacturer actually provides. A longer tool may offer reach, but that does not establish a different allowable load or a universal application. For an air-hammer accessory, confirm the shank and host-tool compatibility. For a hand tool, use the specified striking method and inspect condition as required by the instructions. Do not infer non-sparking certification from colour or alloy alone. Keep the selected tip or face configuration in the purchase record so later replacements remain consistent with the intended task.
Planning the workshop application
Define the intended job in practical terms before comparing options. Record the equipment or component involved, the operation to perform and the access available around it. Include the current tool or accessory if this purchase replaces an existing item. That context helps distinguish a size change from a different product function. It also makes the application and industry examples above easier to assess against the actual work.
Understanding the catalogue record
The official listing identifies this model as Heavy-Duty Air Hammer (Blue-Point®). Its catalogue grouping is Air Hammers / Heavy-Duty Air Hammers. Use that description to identify the product format, then read the individual specifications for the details that matter to the job. A category describes where the product sits in the range; it is not an additional compatibility approval.
Further catalogue details
- Air Inlet Thread Size, inches (NPT): 1/4 (18)
- Blows Per Minute, BPM: 3,400
- Vibration Level, m/s²: 8.6
- Recommended Hose Size, inches (mm): 5/16 (8)
For this record, the available specification labels include Shank Opening, inches (mm); Piston Stroke, inches (mm); Length, inches (mm). Read each value together with its label and unit. A drive size, external dimension and working range describe different things, even if their numbers look similar. If the job requires a value that is not listed, request that detail before ordering instead of estimating it from the photograph.
The catalogue country-of-origin field is CHN. This field concerns the listed product origin; it does not identify local inventory, delivery time or the warranty terms of a Vietnam quotation. Confirm those commercial details separately.
Comparing options before ordering
No sufficiently close alternative is confirmed in the comparison section. That is an unresolved selection question, not proof that every other model is unsuitable. For a useful comparison, provide the required function, dimensions and parent equipment. A supplier can then check a specific candidate against those requirements. Do not substitute a related accessory, a kit component or a product with a similar name without resolving the relevant fit details.
Purchase questions and receiving checks
What should the order include?
Ask for a line-item description of the supplied configuration. For a set or kit, confirm the contents; for a component, confirm the quantity and the matching parent model where relevant. If photographs show a larger assembly or several items, do not assume all of them form part of this SKU. Keep any essential accessories and documents explicit in the quotation so that receiving checks can follow the same requirements.
Receiving, care and record keeping
On receipt, compare the item and its packaging with the ordered model, quantity and configuration. Check the supplied components and any requested documentation. Keep the product identification visible in the workshop’s inventory record. If the delivered item differs from the confirmed order, resolve that difference before assigning it to the planned job. This is especially useful when a range contains visually similar sizes or accessories for different parent tools.
For continued use, follow the manufacturer’s instructions for inspection, cleaning, storage and maintenance. Do not assume that a cleaning chemical, lubricant or maintenance method used on another tool is suitable here. Keep damaged or uncertain equipment out of the planned task until its condition is assessed. Record any replacement parts by model so future orders use the confirmed reference rather than a visual guess.
Ordering in Vietnam
Send Techmaster Vietnam the model number AT2050 and details of the task or existing equipment. Include any required sizes, connections and accessories.
Before ordering, confirm the quotation, lead time, package contents and applicable warranty terms. The official catalogue is the technical reference; it does not establish local stock or a Vietnam selling price.
For the source record, see the official Snap-on product listing. You can also browse the Vietnam product catalogue for related tools.
