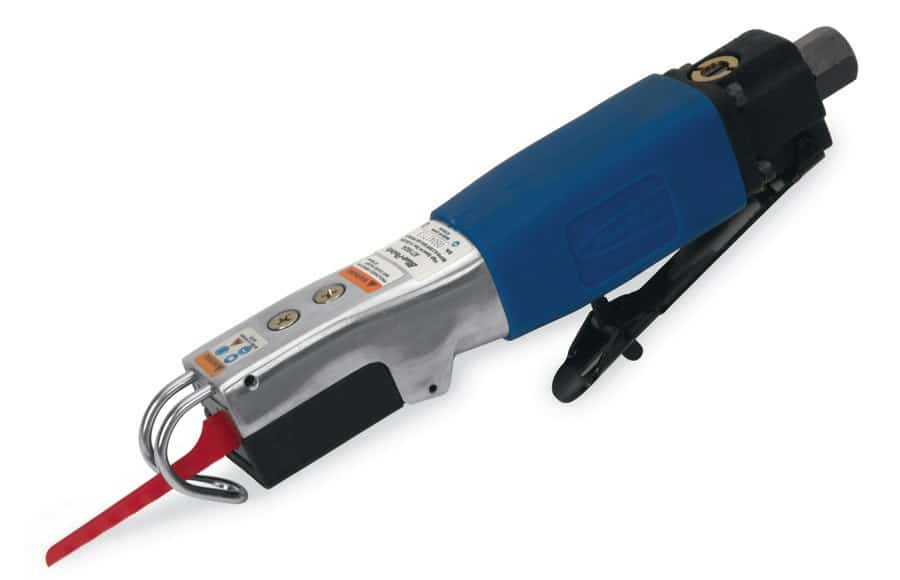

High-Speed Reciprocating Saw (Blue-Point®)

Stock:Còn hàng: / US origin

Liên hệ

AT192A — High-Speed Reciprocating Saw (Blue-Point®). Cut suitable material with the stated saw format and a compatible blade.

Applications, specifications and model comparison

AT192A — High-Speed Reciprocating Saw (Blue-Point®). Cut suitable material with the stated saw format and a compatible blade.

Applications and industries

Fabrication, body repair and maintenance workshops are potential users with suitable blades and work controls.

  • Match the blade fitting and tooth pattern to the work material.
  • Then compare frame or powered-tool access, cutting capacity and the listed package contents.

These industry examples are selection guidance, not additional manufacturer approvals.

Features of AT192A

  • Adjustable blade guard controls cutting depth
  • Teflon®-coated piston for smooth operation and durability
  • Features a comfort grip handle with a safety lever throttle
  • Includes saw and (3) blades (18, 24 and 32 TPI)
  • Performs straight or scroll cuts in metal and plastic
  • Comfort grip housing for greater control
  • Optional 4" long blades are also available

Specifications and fit checks

  • Free Speed, RPM: 11,000
  • Sound Pressure Level, dB(A): 82.0
  • Piston Stroke, inches (mm): 3/8 (10)
  • Length, inches (mm): 9.3 (235)
  • Air Consumption, Free Speed, CFM (SCFM) [l/min]: 1.0 (7) [28]
  • Blade Strokes per Minute: 11,000

A hand hacksaw and a powered reciprocating saw are not substitutes. Compare blade format, available access, included equipment and operating method.

Similar-model selection for AT192A

A sufficiently close alternative has not been verified for this SKU. Therefore, compare the exact function, dimensions and mating equipment before choosing another model. Ask Techmaster Vietnam for a model-specific comparison.

AT192A selection checklist

For AT192A, verify the required task, working range, interface dimensions and package contents against the official catalogue details. This final check helps prevent ordering a visually similar model with a different fit or capability.

Choosing AT192A for the task

Consider the complete power-tool setup, not just the headline drive or cutting size. For a pneumatic model, check the specified air supply, connection and hose requirements. For a cordless model, identify the battery platform and whether batteries and a charger are included. Then compare the space around the work, the working direction and the attachment required for the task. These checks help distinguish a practical configuration from a tool that only appears similar.

A quoted torque, speed or stroke value describes a particular characteristic; it does not replace the full operating instructions. Compare like measurements and avoid treating different ratings as equivalent. Also, a tool-only listing and a kit can share the same basic tool while supplying different equipment. Ask for the exact package contents. The electrical requirements of a charger and the supply requirements of an air tool need separate confirmation. Do not infer Vietnam mains compatibility from the product’s availability in an overseas catalogue.

Planning the workshop application

Define the intended job in practical terms before comparing options. Record the equipment or component involved, the operation to perform and the access available around it. Include the current tool or accessory if this purchase replaces an existing item. That context helps distinguish a size change from a different product function. It also makes the application and industry examples above easier to assess against the actual work.

Understanding the catalogue record

The official listing identifies this model as High-Speed Reciprocating Saw (Blue-Point®). Its catalogue grouping is Cutting Tools / Reciprocating Saws (Blue-Point®). Use that description to identify the product format, then read the individual specifications for the details that matter to the job. A category describes where the product sits in the range; it is not an additional compatibility approval.

Further catalogue details

  • Air Inlet Thread Size, inches (NPT): 1/4 (18)
  • Vibration Level, m/s²: 10.1
  • Recommended Hose Size, inches (mm): 3/8 (10)
  • Free Speed, SPM: 11,000

For this record, the available specification labels include Free Speed, RPM; Piston Stroke, inches (mm); Length, inches (mm). Read each value together with its label and unit. A drive size, external dimension and working range describe different things, even if their numbers look similar. If the job requires a value that is not listed, request that detail before ordering instead of estimating it from the photograph.

The catalogue country-of-origin field is CHN. This field concerns the listed product origin; it does not identify local inventory, delivery time or the warranty terms of a Vietnam quotation. Confirm those commercial details separately.

Comparing options before ordering

No sufficiently close alternative is confirmed in the comparison section. That is an unresolved selection question, not proof that every other model is unsuitable. For a useful comparison, provide the required function, dimensions and parent equipment. A supplier can then check a specific candidate against those requirements. Do not substitute a related accessory, a kit component or a product with a similar name without resolving the relevant fit details.

Purchase questions and receiving checks

What should the order include?

Ask for a line-item description of the supplied configuration. For a set or kit, confirm the contents; for a component, confirm the quantity and the matching parent model where relevant. If photographs show a larger assembly or several items, do not assume all of them form part of this SKU. Keep any essential accessories and documents explicit in the quotation so that receiving checks can follow the same requirements.

Receiving, care and record keeping

On receipt, compare the item and its packaging with the ordered model, quantity and configuration. Check the supplied components and any requested documentation. Keep the product identification visible in the workshop’s inventory record. If the delivered item differs from the confirmed order, resolve that difference before assigning it to the planned job. This is especially useful when a range contains visually similar sizes or accessories for different parent tools.

For continued use, follow the manufacturer’s instructions for inspection, cleaning, storage and maintenance. Do not assume that a cleaning chemical, lubricant or maintenance method used on another tool is suitable here. Keep damaged or uncertain equipment out of the planned task until its condition is assessed. Record any replacement parts by model so future orders use the confirmed reference rather than a visual guess.

Ordering in Vietnam

Send Techmaster Vietnam the model number AT192A and details of the task or existing equipment. Include any required sizes, connections and accessories.

Before ordering, confirm the quotation, lead time, package contents and applicable warranty terms. The official catalogue is the technical reference; it does not establish local stock or a Vietnam selling price.

For the source record, see the official Snap-on product listing. You can also browse the Vietnam product catalogue for related tools.
