Interchangeable Tip 12 V Digital Display Circuit Tester Kit

Official catalogue country of origin: KOR.

EECT413 — Interchangeable Tip 12 V Digital Display Circuit Tester Kit. Support measurements or connection to the specified test equipment.

Applications and industries

Vehicle diagnostics, equipment troubleshooting and maintenance testing are potential settings within the product’s stated ratings.

• Match the probe, connector or instrument function to the measurement.
• Then verify voltage limits, measurement category and lead compatibility from the complete documentation.

These industry examples are selection guidance, not additional manufacturer approvals.

Features of EECT413

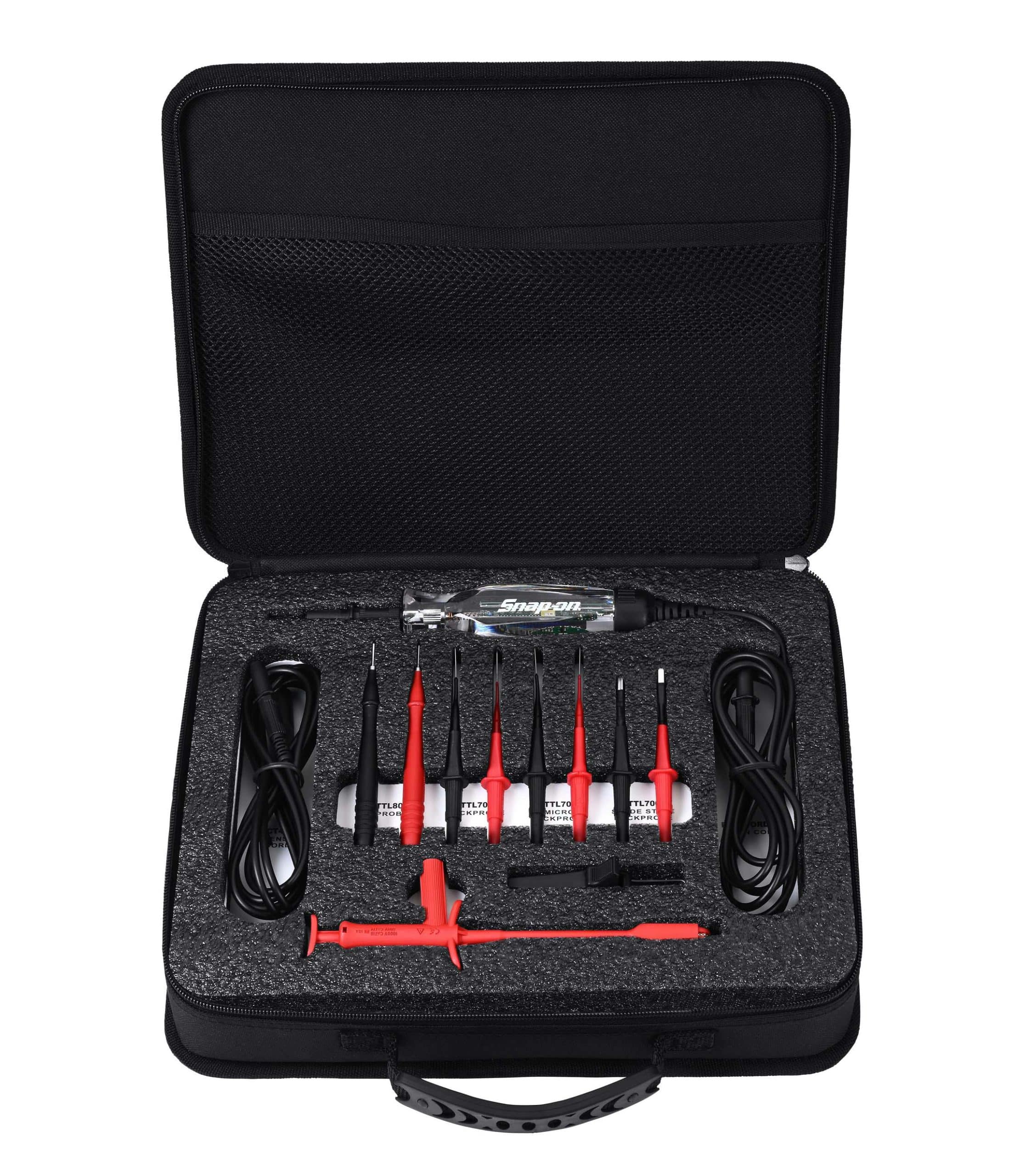

• 12 V circuit-testing kit includes various non-intrusive grabbers, clips, plus standard, micro and spade style probes to suit just about any job
• LCD digital display enables detection of DC voltage on 6 and 12 V vehicles
• Computer safe <10mA circuit draw for confident testing
• Foam organizer includes a cut-out silhouette of the component, the part number, description and color for excellent tool control
• Backlit LED indicates green for ground and red for power
• Surge protected circuitry displays 3–19.99 V DC (± 0.3 V accuracy)
• Safety style fixed shroud banana jacks—help protect against accidental metal to metal contact
• Hands-free to jiggle wires, replace a fuse or operate a switch
• Includes nylon carrying case with convenient foam tool organizer

Specifications and fit checks

• Voltage: 6 and 12 V DC
• Operating Temperature: 0–120 °F (-18–49 °C)
• Replacement Cord Assembly: EECTCORD413
• Replacement LED and Spring Assembly: EECT400W-LCD
• Computer Safe: Yes, <10 mA (Do not use on airbags)
• Ground Connection Indicator Display Color: Green

Never infer mains or high-voltage suitability from connector shape or color. Check the full instrument-and-lead safety rating before use.

Similar models to EECT413

Compare the interchangeable-tip kit with the standard tester. Check voltage range, current draw and supplied connections for the intended circuit. These are comparison options, not confirmed replacements.

The kit source gives different range endpoints in its features and specification table. Confirm the applicable test range before selection.

Choosing EECT413 for the task

Define the measurement or connection task before choosing a tester, probe, lead or adaptor. The signal type, expected range, connector and access point all matter. A complete instrument and a lead accessory do different jobs. Next, check the documented limits of the instrument and every connected accessory. Connector shape and colour do not establish the permitted voltage, current or measurement category.

For workshop diagnostics, distinguish low-voltage vehicle work from mains or other higher-energy circuits. A tool suitable for one setting is not automatically suitable for another. Follow the instrument maker’s complete safety instructions and the equipment service procedure. If a replacement lead or probe is required, include the instrument model and the exact connection details in the inquiry. Also, compare the supplied components of a kit rather than assuming all shown probes are included. Catalogue guidance does not replace a task-specific electrical risk assessment.

Planning the workshop application

Define the intended job in practical terms before comparing options. Record the equipment or component involved, the operation to perform and the access available around it. Include the current tool or accessory if this purchase replaces an existing item. That context helps distinguish a size change from a different product function. It also makes the application and industry examples above easier to assess against the actual work.

Understanding the catalogue record

The official listing identifies this model as Interchangeable Tip 12 V Digital Display Circuit Tester Kit. Its catalogue grouping is Circuit Testers / Digital Display Circuit Testers. Use that description to identify the product format, then read the individual specifications for the details that matter to the job. A category describes where the product sits in the range; it is not an additional compatibility approval.

Further catalogue details

• Extension Cord Part Number: EECT413-2
• Terminal End: Heavy-Duty, Copper Clip
• Polarity: Bi-Directional with Color LED, Red and Green indicators
• Cord Type: Straight Rubber

For this record, the available specification labels include Voltage; Operating Temperature; Computer Safe. Read each value together with its label and unit. A drive size, external dimension and working range describe different things, even if their numbers look similar. If the job requires a value that is not listed, request that detail before ordering instead of estimating it from the photograph.

The catalogue country-of-origin field is KOR. This field concerns the listed product origin; it does not identify local inventory, delivery time or the warranty terms of a Vietnam quotation. Confirm those commercial details separately.

Comparing options before ordering

The comparison above names EECT400. Review the displayed differences against the requirement for this job. Begin with function and compatibility, then compare access, configuration and included components. If the names differ by size, drive, colour or kit format, identify which difference matters before making a choice. Similar models are not automatic replacements, and a larger or more expensive option is not necessarily the better match.

Purchase questions and receiving checks

What should the order include?

Ask for a line-item description of the supplied configuration. For a set or kit, confirm the contents; for a component, confirm the quantity and the matching parent model where relevant. If photographs show a larger assembly or several items, do not assume all of them form part of this SKU. Keep any essential accessories and documents explicit in the quotation so that receiving checks can follow the same requirements.

Receiving, care and record keeping

On receipt, compare the item and its packaging with the ordered model, quantity and configuration. Check the supplied components and any requested documentation. Keep the product identification visible in the workshop’s inventory record. If the delivered item differs from the confirmed order, resolve that difference before assigning it to the planned job. This is especially useful when a range contains visually similar sizes or accessories for different parent tools.

For continued use, follow the manufacturer’s instructions for inspection, cleaning, storage and maintenance. Do not assume that a cleaning chemical, lubricant or maintenance method used on another tool is suitable here. Keep damaged or uncertain equipment out of the planned task until its condition is assessed. Record any replacement parts by model so future orders use the confirmed reference rather than a visual guess.

Ordering in Vietnam

Send Techmaster Vietnam the model number EECT413 and details of your task or existing equipment. Include any required sizes, connections and accessories. This helps identify the correct configuration.

Before ordering, confirm the quotation, lead time, package contents and applicable warranty terms. The official catalogue is the technical reference; it does not establish local stock or a Vietnam selling price.

For the source record, see the official Snap-on product listing. You can also browse the Vietnam product catalogue for related tools.
