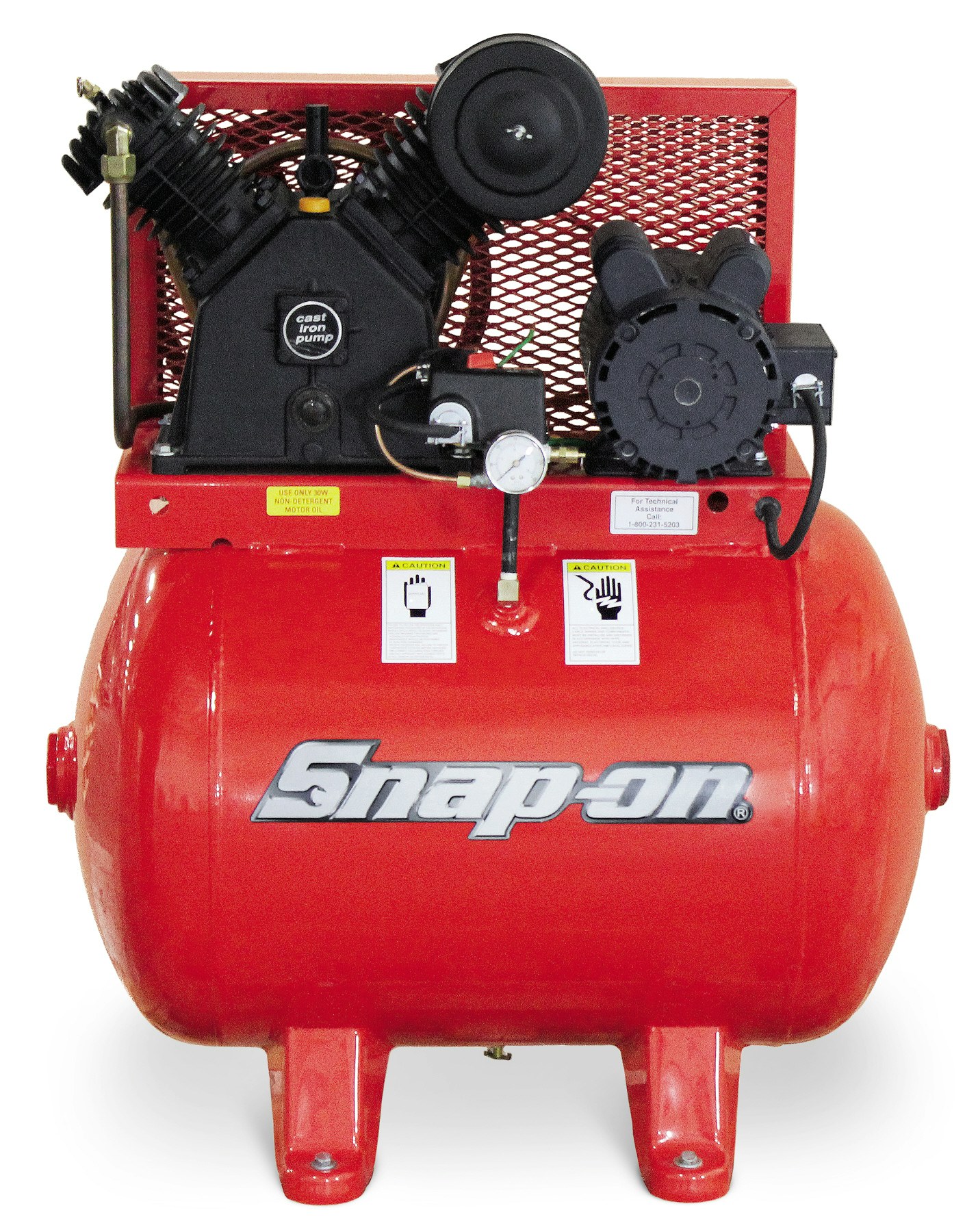

40-Gallon Single-Phase Stationary Air Compressor

Official catalogue country of origin: CAN.

BRA5140H — 40-Gallon Single-Phase Stationary Air Compressor. Supply compressed air to tools within the compressor’s stated capacity.

Applications and industries

Automotive service, fabrication and maintenance workshops are potential users with a suitable installation and duty requirement.

• Add the air demand of tools that may run together.
• Then check the listed electrical supply, receiver capacity and installation requirements.

These industry examples are selection guidance, not additional manufacturer approvals.

Features of BRA5140H

• Deep finned head for better cooling, efficiency and longer life
• Intercooler cools air between compression stages for longer pump life and better efficiency
• Cast iron cylinder equals a longer life for piston rings and longevity of all moving parts
• Inlet filter muffler cleans and quiets air as it’s made • After-cooler cools air before it enters the air receiver
• Steel belt guarded for added safety
• Dual-acting flywheel fan cools pump as it runs and balances the operation
• High-quality Baldor® industrial motor
• Mag-starter included and factory-wired on all models over 5 HP
• Premium models include an hour meter and automatic tank drain
• Vibration isolators included with all air compressors
• Powder coat paint finish stays brilliant for years
• High-quality pressure control switch unloads startup pressure and controls cut-in and cut-out pressure settings

Specifications and fit checks

• Auto Tank Drain: No
• Mag Starter: Not Req.
• Air Delivery SCFM @ PSI: 14.0 @ 175
• Pump Stages: Dual
• Max. PSI: 175
• Electrical Requirements: 208/230 V, 1-phase

Compare delivered air performance and duty rating, not tank size alone. Have the installation checked against the manufacturer’s requirements.

Similar models to BRA5140H

The table compares the listed model details. These are selection options, not confirmed replacements. Check the differences against your task and existing equipment.

Choosing BRA5140H for the task

Map the air connection from the supply to the equipment before choosing a hose, coupling or control component. Thread size, connection gender, sealing arrangement and coupling profile are separate characteristics. Matching only one of them may still leave an incompatible assembly. Next, review the published pressure and flow requirements for every relevant component. A connection that physically fits does not automatically meet the operating requirement.

For a compressor, compare delivered air performance and the intended duty with the equipment demand. Receiver size alone does not describe the available continuous supply. Installation, electrical supply and maintenance access also need planning. For a smaller air-line component, identify the exact role: connection, filtration, regulation or another stated function. Keep the selected part number and its requirements with the equipment record. Any installation or system change should follow the manufacturer’s instructions and the applicable workshop procedure.

Planning the workshop application

Define the intended job in practical terms before comparing options. Record the equipment or component involved, the operation to perform and the access available around it. Include the current tool or accessory if this purchase replaces an existing item. That context helps distinguish a size change from a different product function. It also makes the application and industry examples above easier to assess against the actual work.

Understanding the catalogue record

The official listing identifies this model as 40-Gallon Single-Phase Stationary Air Compressor. Its catalogue grouping is Air Compressors / Air Compressors/Snap-on®. Use that description to identify the product format, then read the individual specifications for the details that matter to the job. A category describes where the product sits in the range; it is not an additional compatibility approval.

Further catalogue details

• Tank, gal: 40
• Hour Meter: No
• Amp Requirements: 30 @ 208/230 V
• Horsepower, HP: 5

For this record, the available specification labels include Auto Tank Drain; Mag Starter; Air Delivery SCFM @ PSI. Read each value together with its label and unit. A drive size, external dimension and working range describe different things, even if their numbers look similar. If the job requires a value that is not listed, request that detail before ordering instead of estimating it from the photograph.

The catalogue country-of-origin field is CAN. This field concerns the listed product origin; it does not identify local inventory, delivery time or the warranty terms of a Vietnam quotation. Confirm those commercial details separately.

Comparing options before ordering

The comparison above names BRA8180V and BRA517V. Review the displayed differences against the requirement for this job. Begin with function and compatibility, then compare access, configuration and included components. If the names differ by size, drive, colour or kit format, identify which difference matters before making a choice. Similar models are not automatic replacements, and a larger or more expensive option is not necessarily the better match.

Purchase questions and receiving checks

What should the order include?

Ask for a line-item description of the supplied configuration. For a set or kit, confirm the contents; for a component, confirm the quantity and the matching parent model where relevant. If photographs show a larger assembly or several items, do not assume all of them form part of this SKU. Keep any essential accessories and documents explicit in the quotation so that receiving checks can follow the same requirements.

Receiving, care and record keeping

On receipt, compare the item and its packaging with the ordered model, quantity and configuration. Check the supplied components and any requested documentation. Keep the product identification visible in the workshop’s inventory record. If the delivered item differs from the confirmed order, resolve that difference before assigning it to the planned job. This is especially useful when a range contains visually similar sizes or accessories for different parent tools.

For continued use, follow the manufacturer’s instructions for inspection, cleaning, storage and maintenance. Do not assume that a cleaning chemical, lubricant or maintenance method used on another tool is suitable here. Keep damaged or uncertain equipment out of the planned task until its condition is assessed. Record any replacement parts by model so future orders use the confirmed reference rather than a visual guess.

Ordering in Vietnam

Send Techmaster Vietnam the model number BRA5140H and details of your task or existing equipment. Include any required sizes, connections and accessories. This helps identify the correct configuration.

Before ordering, confirm the quotation, lead time, package contents and applicable warranty terms. The official catalogue is the technical reference; it does not establish local stock or a Vietnam selling price.
