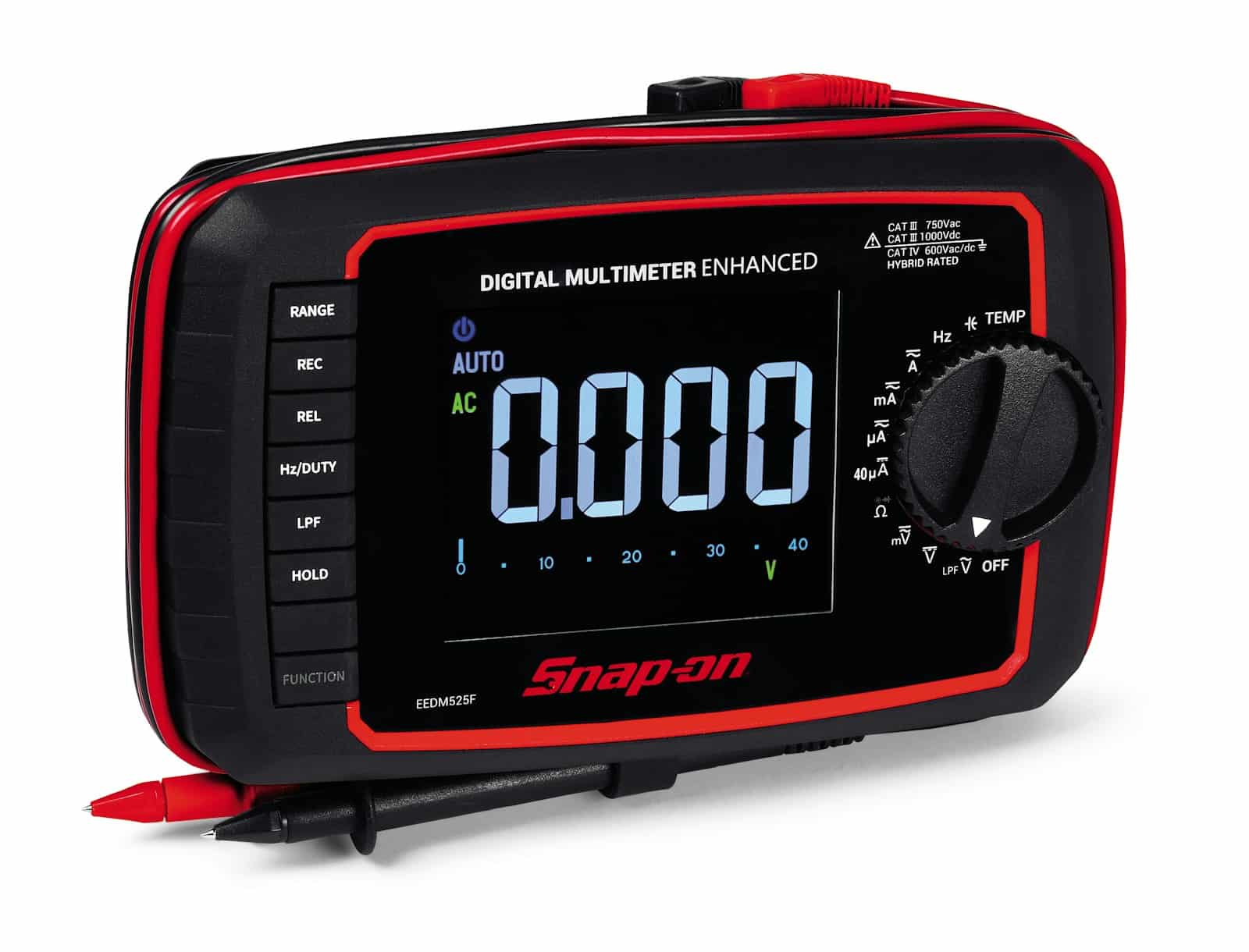

Enhanced Multimeter TRMS-Color

Official catalogue country of origin: KOR.

EEDM525F — Enhanced Multimeter TRMS-Color. Support measurements or connection to the specified test equipment.

Applications and industries

The manufacturer lists these application details:

• Tap into a wide range of electrical impulses necessary for diagnosing circuit or component problems. Measure electrical signals on vehicles to test: • Voltage and voltage drops • Low voltage down to milli-Volts which are increasingly needed • Ohms or resistance readings for proper circuit and component testing • Amp draws from 10 amps to 40 Micro Amps critical for testing circuit loads • Temperature* in Fahrenheit and Celsius from AC to radiator needs • Capacitance for measuring proper capacitor ranges to determine good or bad units • HZ for testing signal rates

Vehicle diagnostics, equipment troubleshooting and maintenance testing are potential settings within the product’s stated ratings.

• Match the probe, connector or instrument function to the measurement.
• Then verify voltage limits, measurement category and lead compatibility from the complete documentation.

These industry examples are selection guidance, not additional manufacturer approvals.

Features of EEDM525F

• Measures resistance, AC/DC voltage, true-RMS AC, AC/DC current, frequency and capacitance.
• The 4-inch color display has 4,000 counts and a 41-segment bar graph. The manufacturer does not recommend the display for use in sunlight.
• Published ratings: CAT III 1,000 V AC and CAT IV 600 V AC. Verify the complete meter, leads and procedure before any hazardous-voltage measurement.
• The built-in tilt stand supports viewing. An EEDMMAGSTRAP hanger is optional.
• Automatic and manual range selection support different measurement tasks.
• Record mode stores minimum and maximum readings. Hold mode keeps a reading for later reference.
• A low-pass filter reduces AC noise. Relative mode can account for lead resistance during low-ohm measurements.
• The optional EEDMTEMP-1 K-type adaptor enables Fahrenheit and Celsius measurements.
• The test-lead storage wrap includes a retention strap.
• Use the manufacturer’s complete instructions for fuse checks, lead connections and troubleshooting.

Specifications and fit checks

• Capacitance: Yes
• RPM: EEDMRPMG (optional)
• Battery Life (Continuous Use), hours: 10
• Low Pass Filter (LPF): Yes
• Case or Zipper Pouch: EEDM5F-POUCH
• Adjustable Trigger Level: No

Never infer mains or high-voltage suitability from connector shape or color. Check the full instrument-and-lead safety rating before use.

Similar models to EEDM525F

The table compares the listed model details. These are selection options, not confirmed replacements. Check the differences against your task and existing equipment.

Choosing EEDM525F for the task

Define the measurement or connection task before choosing a tester, probe, lead or adaptor. The signal type, expected range, connector and access point all matter. A complete instrument and a lead accessory do different jobs. Next, check the documented limits of the instrument and every connected accessory. Connector shape and colour do not establish the permitted voltage, current or measurement category.

For workshop diagnostics, distinguish low-voltage vehicle work from mains or other higher-energy circuits. A tool suitable for one setting is not automatically suitable for another. Follow the instrument maker’s complete safety instructions and the equipment service procedure. If a replacement lead or probe is required, include the instrument model and the exact connection details in the inquiry. Also, compare the supplied components of a kit rather than assuming all shown probes are included. Catalogue guidance does not replace a task-specific electrical risk assessment.

Planning the workshop application

Define the intended job in practical terms before comparing options. Record the equipment or component involved, the operation to perform and the access available around it. Include the current tool or accessory if this purchase replaces an existing item. That context helps distinguish a size change from a different product function. It also makes the application and industry examples above easier to assess against the actual work.

Understanding the catalogue record

The official listing identifies this model as Enhanced Multimeter TRMS-Color. Its catalogue grouping is Digital Multimeters / Automotive Digital Multimeters. Use that description to identify the product format, then read the individual specifications for the details that matter to the job. A category describes where the product sits in the range; it is not an additional compatibility approval.

Further catalogue details

• Temperature: EEDMTEMP-1 (opt.)
• AC Volts: 750
• Power Supply: 9 V Lithium Battery (purchased locally)
• Micro Amps: Yes

For this record, the available specification labels include Capacitance; RPM; Battery Life (Continuous Use), hours. Read each value together with its label and unit. A drive size, external dimension and working range describe different things, even if their numbers look similar. If the job requires a value that is not listed, request that detail before ordering instead of estimating it from the photograph.

The catalogue country-of-origin field is KOR. This field concerns the listed product origin; it does not identify local inventory, delivery time or the warranty terms of a Vietnam quotation. Confirm those commercial details separately.

Comparing options before ordering

The comparison above names EEDM503D and EEDM650C. Review the displayed differences against the requirement for this job. Begin with function and compatibility, then compare access, configuration and included components. If the names differ by size, drive, colour or kit format, identify which difference matters before making a choice. Similar models are not automatic replacements, and a larger or more expensive option is not necessarily the better match.

Purchase questions and receiving checks

What should the order include?

Ask for a line-item description of the supplied configuration. For a set or kit, confirm the contents; for a component, confirm the quantity and the matching parent model where relevant. If photographs show a larger assembly or several items, do not assume all of them form part of this SKU. Keep any essential accessories and documents explicit in the quotation so that receiving checks can follow the same requirements.

Receiving, care and record keeping

On receipt, compare the item and its packaging with the ordered model, quantity and configuration. Check the supplied components and any requested documentation. Keep the product identification visible in the workshop’s inventory record. If the delivered item differs from the confirmed order, resolve that difference before assigning it to the planned job. This is especially useful when a range contains visually similar sizes or accessories for different parent tools.

For continued use, follow the manufacturer’s instructions for inspection, cleaning, storage and maintenance. Do not assume that a cleaning chemical, lubricant or maintenance method used on another tool is suitable here. Keep damaged or uncertain equipment out of the planned task until its condition is assessed. Record any replacement parts by model so future orders use the confirmed reference rather than a visual guess.

Ordering in Vietnam

Send Techmaster Vietnam the model number EEDM525F and details of your task or existing equipment. Include any required sizes, connections and accessories. This helps identify the correct configuration.

Before ordering, confirm the quotation, lead time, package contents and applicable warranty terms. The official catalogue is the technical reference; it does not establish local stock or a Vietnam selling price.

For the source record, see the official Snap-on product listing. You can also browse the Vietnam product catalogue for related tools.
