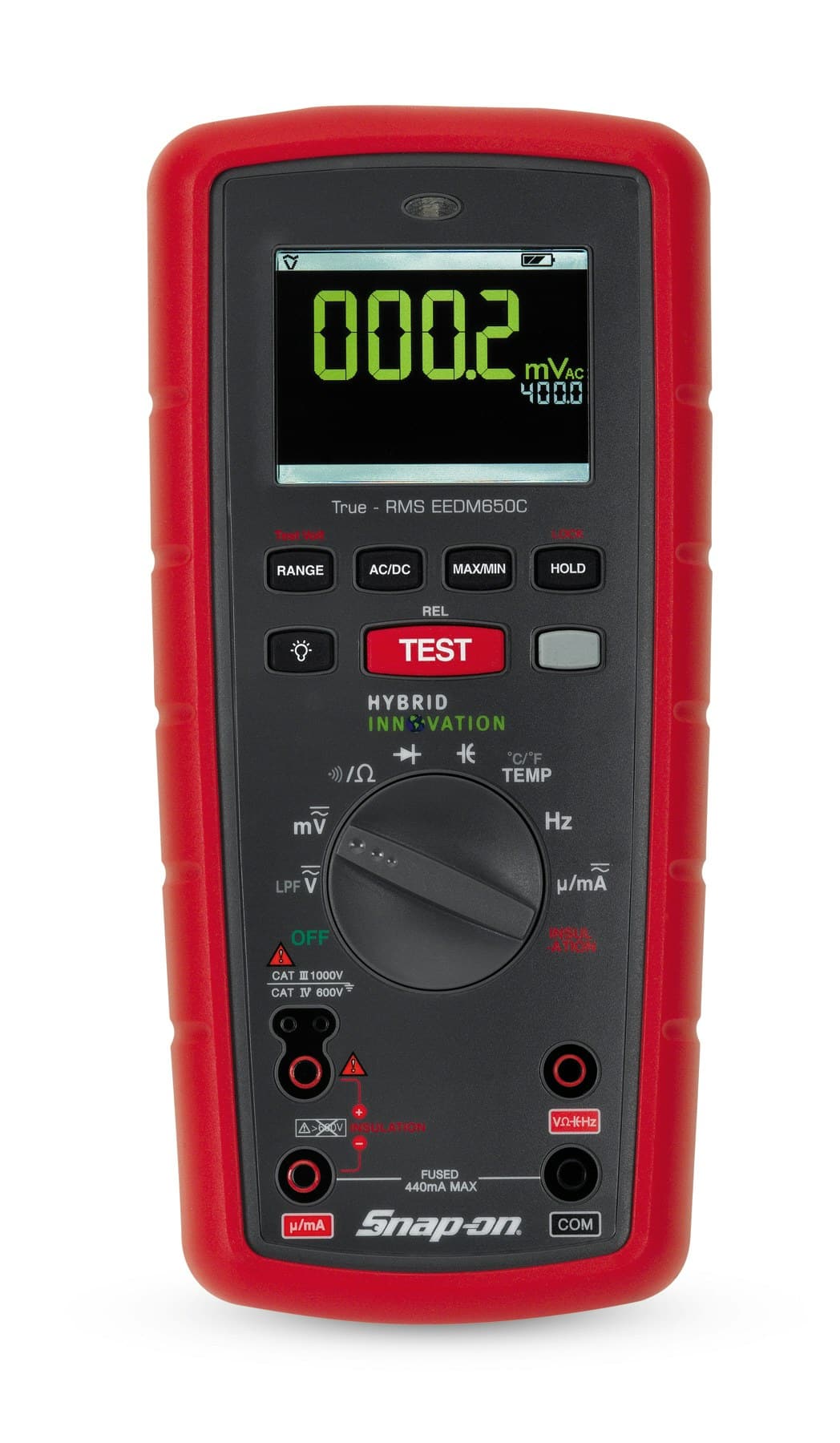

Multimeter/Insulation Tester (Certificate Of Calibration)

Official catalogue country of origin: KOR.

EEDM650CCRT — Multimeter/Insulation Tester (Certificate Of Calibration). Support measurements or connection to the specified test equipment.

Applications and industries

Vehicle diagnostics, equipment troubleshooting and maintenance testing are potential settings within the product’s stated ratings.

• Match the probe, connector or instrument function to the measurement.
• Then verify voltage limits, measurement category and lead compatibility from the complete documentation.

These industry examples are selection guidance, not additional manufacturer approvals.

Features of EEDM650CCRT

• Insulation testing of electric motor coil winding on hybrids: Checks the coating on the wires to detect leakage current that can result in poor performance or failure
• CAT III 1000 V, CAT IV 600 V Safety Rating
• 0.25 Peak Capture: Catches faster signals that other meters may miss regarding intermittent issues for improved diagnostics
• 4,000 Count Color Graphic Display: World’s 1st DMM in color, easy on the eyes and can be seen in sunlight
• Rechargeable Battery: Insulation-tests can draw power quickly, the rechargeable battery keeps you working—reduces battery replacement costs
• 5 Voltage Test Ranges: 50, 100, 250, 500, 1,000 V DC
• CAT III 1,000 V / CAT IV 600 V Safety Standard: Special circuit board spacing increases safety—use for hybrids, power plants, wind turbines and more
• Separate Fuse Compartment: Easy to replace fuse via one removal screw
• High-quality Test Leads: Same safety standard ratings as the meter
• Technical Support: 1-888-382-6522

Specifications and fit checks

• Capacitance: Yes
• RPM: No
• Low Pass Filter (LPF): Yes
• Case or Zipper Pouch: EEDM650CPB (opt.)
• Replacement Fuses: EEDM604C1
• Adjustable Trigger Level: No

Never infer mains or high-voltage suitability from connector shape or color. Check the full instrument-and-lead safety rating before use.

Similar models to EEDM650CCRT

The table compares the listed model details. These are selection options, not confirmed replacements. Check the differences against your task and existing equipment.

Choosing EEDM650CCRT for the task

Define the measurement or connection task before choosing a tester, probe, lead or adaptor. The signal type, expected range, connector and access point all matter. A complete instrument and a lead accessory do different jobs. Next, check the documented limits of the instrument and every connected accessory. Connector shape and colour do not establish the permitted voltage, current or measurement category.

For workshop diagnostics, distinguish low-voltage vehicle work from mains or other higher-energy circuits. A tool suitable for one setting is not automatically suitable for another. Follow the instrument maker’s complete safety instructions and the equipment service procedure. If a replacement lead or probe is required, include the instrument model and the exact connection details in the inquiry. Also, compare the supplied components of a kit rather than assuming all shown probes are included. Catalogue guidance does not replace a task-specific electrical risk assessment.

Planning the workshop application

Define the intended job in practical terms before comparing options. Record the equipment or component involved, the operation to perform and the access available around it. Include the current tool or accessory if this purchase replaces an existing item. That context helps distinguish a size change from a different product function. It also makes the application and industry examples above easier to assess against the actual work.

Understanding the catalogue record

The official listing identifies this model as Multimeter/Insulation Tester (Certificate Of Calibration). Its catalogue grouping is Digital Multimeters / Automotive Digital Multimeters. Use that description to identify the product format, then read the individual specifications for the details that matter to the job. A category describes where the product sits in the range; it is not an additional compatibility approval.

Further catalogue details

• AC Volts: 1,000
• Micro Amps: 400
• Dimensions, inches: 9 x 4-1/4 x 2
• mS Pulse Width: No

For this record, the available specification labels include Capacitance; RPM; Low Pass Filter (LPF). Read each value together with its label and unit. A drive size, external dimension and working range describe different things, even if their numbers look similar. If the job requires a value that is not listed, request that detail before ordering instead of estimating it from the photograph.

The catalogue country-of-origin field is KOR. This field concerns the listed product origin; it does not identify local inventory, delivery time or the warranty terms of a Vietnam quotation. Confirm those commercial details separately.

Comparing options before ordering

The comparison above names EEDM650C and EEDM503D. Review the displayed differences against the requirement for this job. Begin with function and compatibility, then compare access, configuration and included components. If the names differ by size, drive, colour or kit format, identify which difference matters before making a choice. Similar models are not automatic replacements, and a larger or more expensive option is not necessarily the better match.

Purchase questions and receiving checks

What should the order include?

Ask for a line-item description of the supplied configuration. For a set or kit, confirm the contents; for a component, confirm the quantity and the matching parent model where relevant. If photographs show a larger assembly or several items, do not assume all of them form part of this SKU. Keep any essential accessories and documents explicit in the quotation so that receiving checks can follow the same requirements.

Receiving, care and record keeping

On receipt, compare the item and its packaging with the ordered model, quantity and configuration. Check the supplied components and any requested documentation. Keep the product identification visible in the workshop’s inventory record. If the delivered item differs from the confirmed order, resolve that difference before assigning it to the planned job. This is especially useful when a range contains visually similar sizes or accessories for different parent tools.

For continued use, follow the manufacturer’s instructions for inspection, cleaning, storage and maintenance. Do not assume that a cleaning chemical, lubricant or maintenance method used on another tool is suitable here. Keep damaged or uncertain equipment out of the planned task until its condition is assessed. Record any replacement parts by model so future orders use the confirmed reference rather than a visual guess.

Ordering in Vietnam

Send Techmaster Vietnam the model number EEDM650CCRT and details of your task or existing equipment. Include any required sizes, connections and accessories. This helps identify the correct configuration.

Before ordering, confirm the quotation, lead time, package contents and applicable warranty terms. The official catalogue is the technical reference; it does not establish local stock or a Vietnam selling price.
