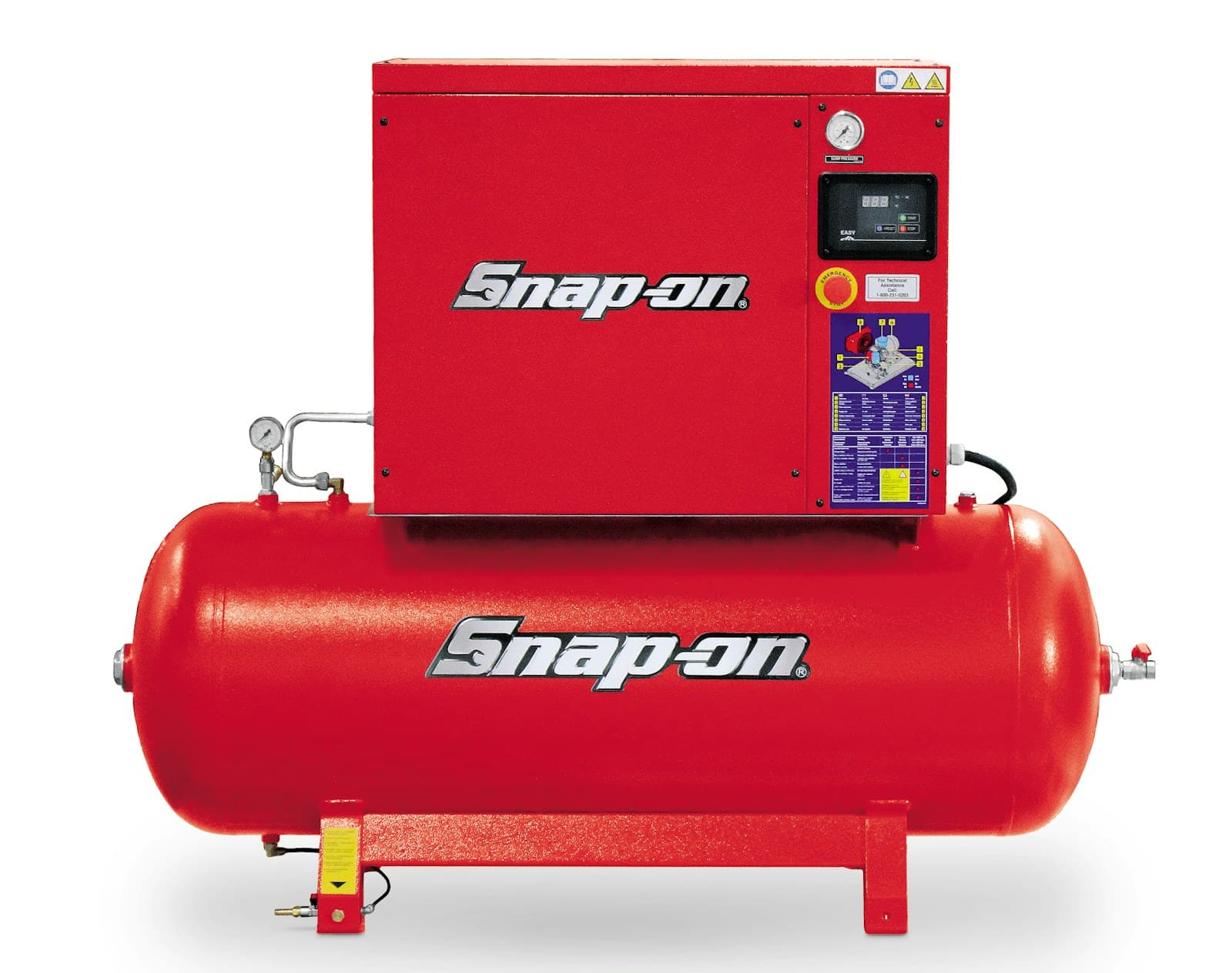

8 HP Rotary Screw Air Compressor

Official catalogue country of origin: ITA.

BRARS8180H — 8 HP Rotary Screw Air Compressor. Supply compressed air to tools within the compressor’s stated capacity.

Applications and industries

The manufacturer lists these application details:

• Capacity to run a 2–3 tech body shop, or a 3–4 tech automotive shop

Automotive service, fabrication and maintenance workshops are potential users with a suitable installation and duty requirement.

• Add the air demand of tools that may run together.
• Then check the listed electrical supply, receiver capacity and installation requirements.

These industry examples are selection guidance, not additional manufacturer approvals.

Features of BRARS8180H

• Efficiency: 35 SCFM @ 125 PSI rotary screws produce cooler air increasing volumetric efficiency and reducing moisture buildup in tanks and supply lines
• Faster recovery time
• Rotary pump design: rotary will recover used tank pressure faster because of the efficiency of the rotary screw
• Depending on maintenance our reciprocating pumps are designed to run 5,000-10,000 hours, whereas our rotary screw compressors are designed to run 20,000-40,000 hours
• Unique 1 pc screw/sump housing
• Our competitors use a two-piece housing with a oil/air separator screen sandwiched between the screw and sump housing creating expensive periodic service calls
• Service contract not required as oil filter, air filter, oil/air separator cartridge and oil are field serviceable
• Competitors require service contracts for maintenance on compressors during the warranty period
• ASME® powder coated tank durable finish, reduces rust, supply line versatility
• Versatility 208/230 V single phase electrical; 40 amp supply
• Hour Meter to track service intervals
• Vibration pads for tank legs to prevent floor walking (no need to bolt compressor to the floor)
• Control Panel, Power on light, Constant ON/OFF/Automatic Cycle Switch and Oil Temperature Gauge
• Built-in coolers, integrated oil and air discharge after cooler
• PLC controlled and notifies when it needs serviced
• TEFC Motor (totally enclosed fan cooled) keeps contaminants out of motor
• Runs quiet 66 dB @ 6 ft
• Versatility: 208/230 V Single phase. Some shops have low voltage requiring a special compressor from our competition. Snap-on® has the ability to special build 208/230 V three phase or 460 V compressors

Specifications and fit checks

• Auto Tank Drain: No
• Mag Starter: Yes
• Air Delivery SCFM @ PSI: 35.0 @ 125
• Pump Stages: Rotary Screw
• Max. PSI: 144
• Electrical Requirements: 208/230 V, 1-phase

Compare delivered air performance and duty rating, not tank size alone. Have the installation checked against the manufacturer’s requirements.

Similar models to BRARS8180H

The table compares the listed model details. These are selection options, not confirmed replacements. Check the differences against your task and existing equipment.

Choosing BRARS8180H for the task

Map the air connection from the supply to the equipment before choosing a hose, coupling or control component. Thread size, connection gender, sealing arrangement and coupling profile are separate characteristics. Matching only one of them may still leave an incompatible assembly. Next, review the published pressure and flow requirements for every relevant component. A connection that physically fits does not automatically meet the operating requirement.

For a compressor, compare delivered air performance and the intended duty with the equipment demand. Receiver size alone does not describe the available continuous supply. Installation, electrical supply and maintenance access also need planning. For a smaller air-line component, identify the exact role: connection, filtration, regulation or another stated function. Keep the selected part number and its requirements with the equipment record. Any installation or system change should follow the manufacturer’s instructions and the applicable workshop procedure.

Planning the workshop application

Define the intended job in practical terms before comparing options. Record the equipment or component involved, the operation to perform and the access available around it. Include the current tool or accessory if this purchase replaces an existing item. That context helps distinguish a size change from a different product function. It also makes the application and industry examples above easier to assess against the actual work.

Understanding the catalogue record

The official listing identifies this model as 8 HP Rotary Screw Air Compressor. Its catalogue grouping is Air Compressors / Air Compressors/Snap-on®. Use that description to identify the product format, then read the individual specifications for the details that matter to the job. A category describes where the product sits in the range; it is not an additional compatibility approval.

Further catalogue details

• Tank, gal: 73
• Hour Meter: Yes
• Amp Requirements: 40 @ 208/230 V
• Horsepower, HP: 8

For this record, the available specification labels include Auto Tank Drain; Mag Starter; Air Delivery SCFM @ PSI. Read each value together with its label and unit. A drive size, external dimension and working range describe different things, even if their numbers look similar. If the job requires a value that is not listed, request that detail before ordering instead of estimating it from the photograph.

The catalogue country-of-origin field is ITA. This field concerns the listed product origin; it does not identify local inventory, delivery time or the warranty terms of a Vietnam quotation. Confirm those commercial details separately.

Comparing options before ordering

The comparison above names BRA5140H and BRA517V. Review the displayed differences against the requirement for this job. Begin with function and compatibility, then compare access, configuration and included components. If the names differ by size, drive, colour or kit format, identify which difference matters before making a choice. Similar models are not automatic replacements, and a larger or more expensive option is not necessarily the better match.

Purchase questions and receiving checks

What should the order include?

Ask for a line-item description of the supplied configuration. For a set or kit, confirm the contents; for a component, confirm the quantity and the matching parent model where relevant. If photographs show a larger assembly or several items, do not assume all of them form part of this SKU. Keep any essential accessories and documents explicit in the quotation so that receiving checks can follow the same requirements.

Receiving, care and record keeping

On receipt, compare the item and its packaging with the ordered model, quantity and configuration. Check the supplied components and any requested documentation. Keep the product identification visible in the workshop’s inventory record. If the delivered item differs from the confirmed order, resolve that difference before assigning it to the planned job. This is especially useful when a range contains visually similar sizes or accessories for different parent tools.

For continued use, follow the manufacturer’s instructions for inspection, cleaning, storage and maintenance. Do not assume that a cleaning chemical, lubricant or maintenance method used on another tool is suitable here. Keep damaged or uncertain equipment out of the planned task until its condition is assessed. Record any replacement parts by model so future orders use the confirmed reference rather than a visual guess.

Ordering in Vietnam

Send Techmaster Vietnam the model number BRARS8180H and details of your task or existing equipment. Include any required sizes, connections and accessories. This helps identify the correct configuration.

Before ordering, confirm the quotation, lead time, package contents and applicable warranty terms. The official catalogue is the technical reference; it does not establish local stock or a Vietnam selling price.
